【7-DAY & 7 ON/OFF PROGRAMS】This in-wall timer switch has the capacity to set up to 7 on/off programs per day with a 1-minute interval, and each program repeats on a weekly basis.

【EASY TO INSTALL & PROGRAM】A neutral wire is required, and all accessories are included. Wire caps are included to simplify wiring. To turn the switch on/off, simply press the door. Backup batteries keep settings for 3 months in case of power outages. This switch is compatible with a 4-wire configuration.

【RANDOM & DST MODE】Turn your lights on/off randomly within +/- 30 minutes of your chosen time, giving the impression that your home is occupied, deterring potential intruders. The DST mode makes it easy to schedule your time.

【ENERGY SAVING & COMPATIBLE】Save on electricity costs by scheduling the on/off times for your lights. This switch is compatible with LED and CFL bulbs.

【SAFE & DURABLE】 This switch is ETL listed and made from ABS. It has a rating of 1875W, 1000W Tungsten, 500VA Electronic Ballast, 1/2HP, and 60Hz 8.3A Ballast. It comes with a 1-year warranty.

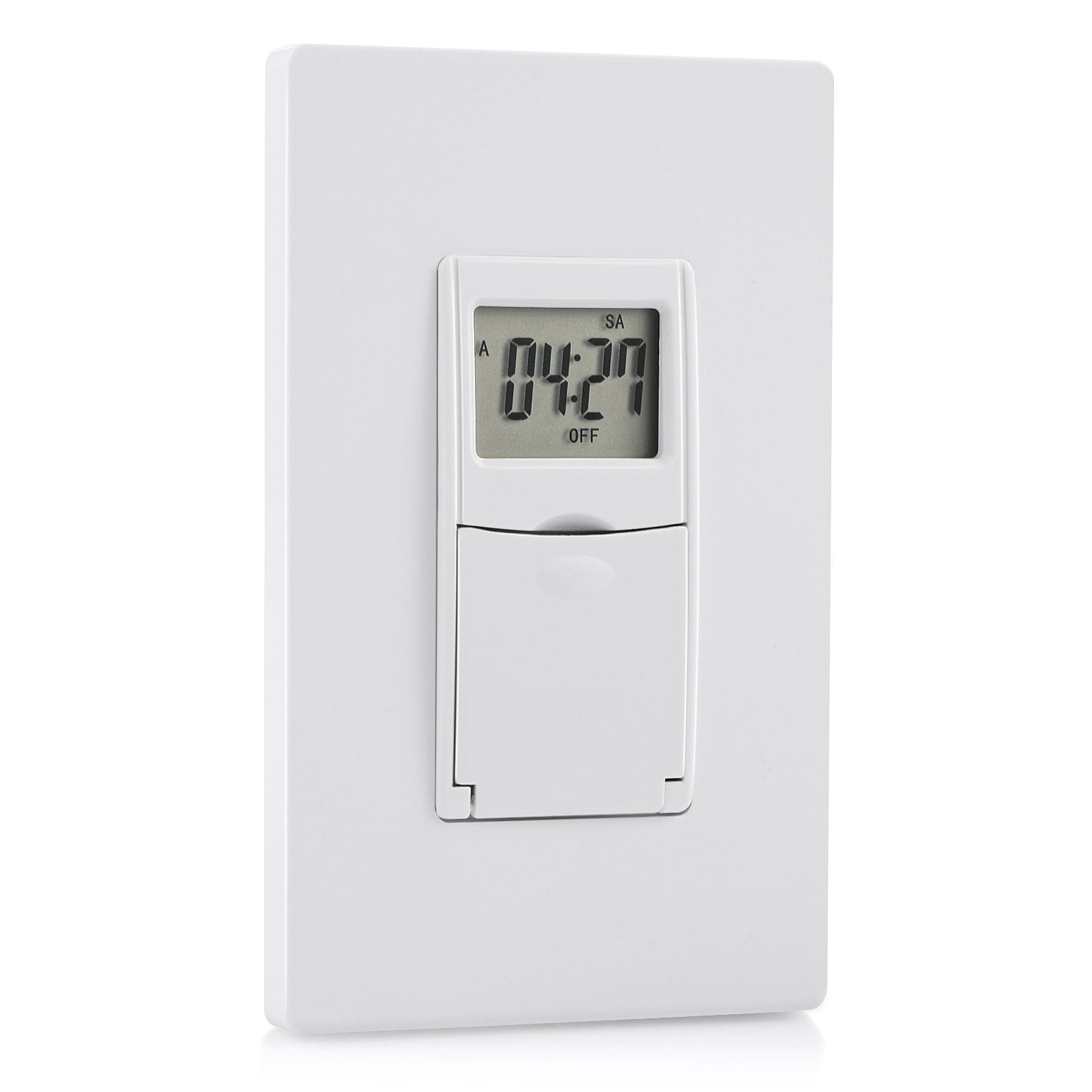

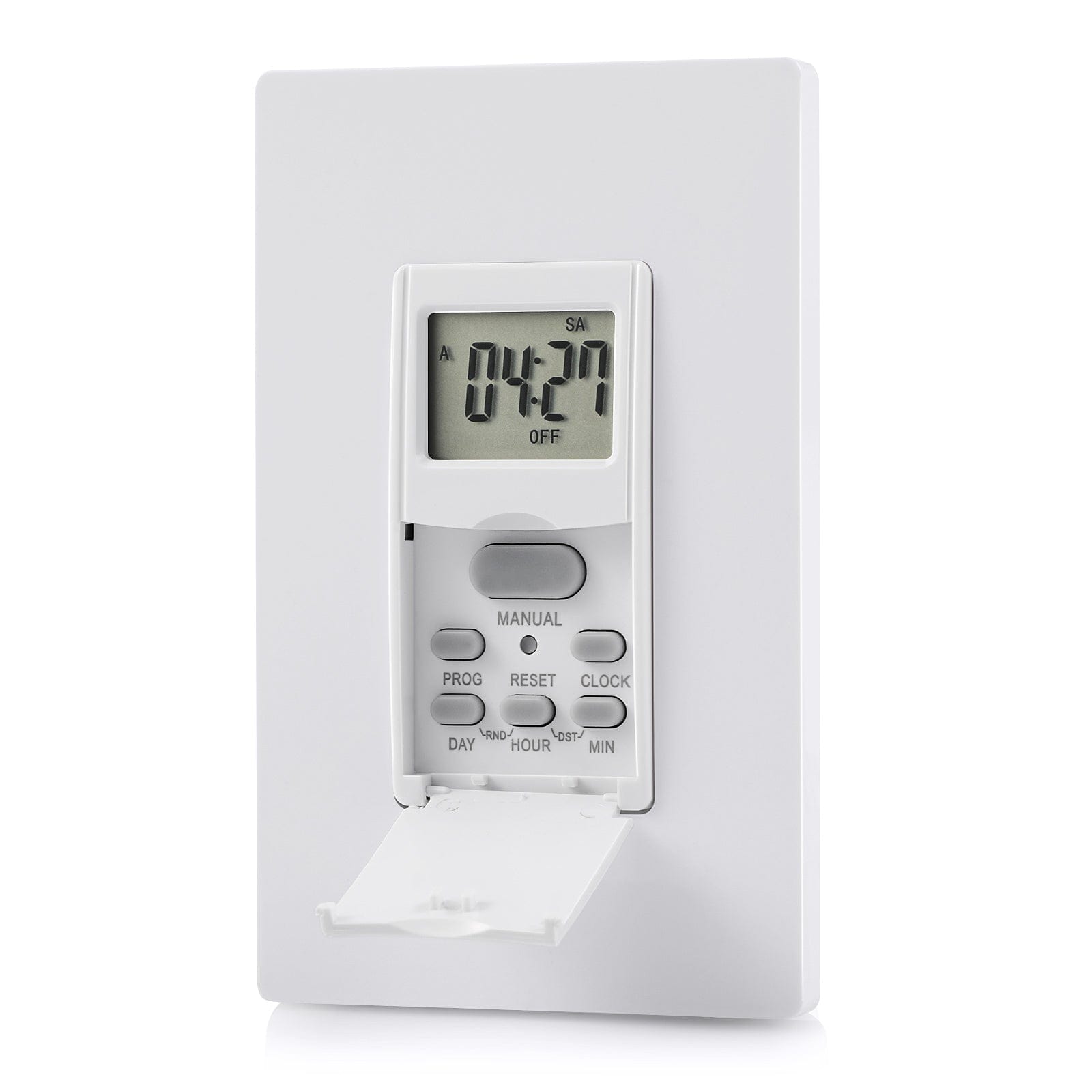

Dewenwils Programmable In-wall Digital Timer

It can control LED CFL lights, fans, aquarium, lamp, and other indoor appliances. Replace standard wall switches to set up the Auto ON/OFF program that meets your daily routine, saves your energy and cost.

You can choose the same setting for all 7 days, weekdays/weekends, or single/double days.

Plus, it does not have a backlight and will not bother you when you are sleeping.

Important: The in wall timer switch is only compatible with 4-wire configuration, please do check it before purchase.

SPECIFICATIONS
Input Voltage: 125VAC, 60Hz
Max Power Rating:
-1875W Resistive/1000W Tungsten
-500VA Electronic Ballast
-120V 60Hz 8.3A Ballast
-125VAC 1/2HP

PACKING LIST
1x In-wall Digital Timer
1x Screwless Wall Plate
4x Wall Box Screw
4x Wire Cap
1x Instruction Manual

Manual Mode

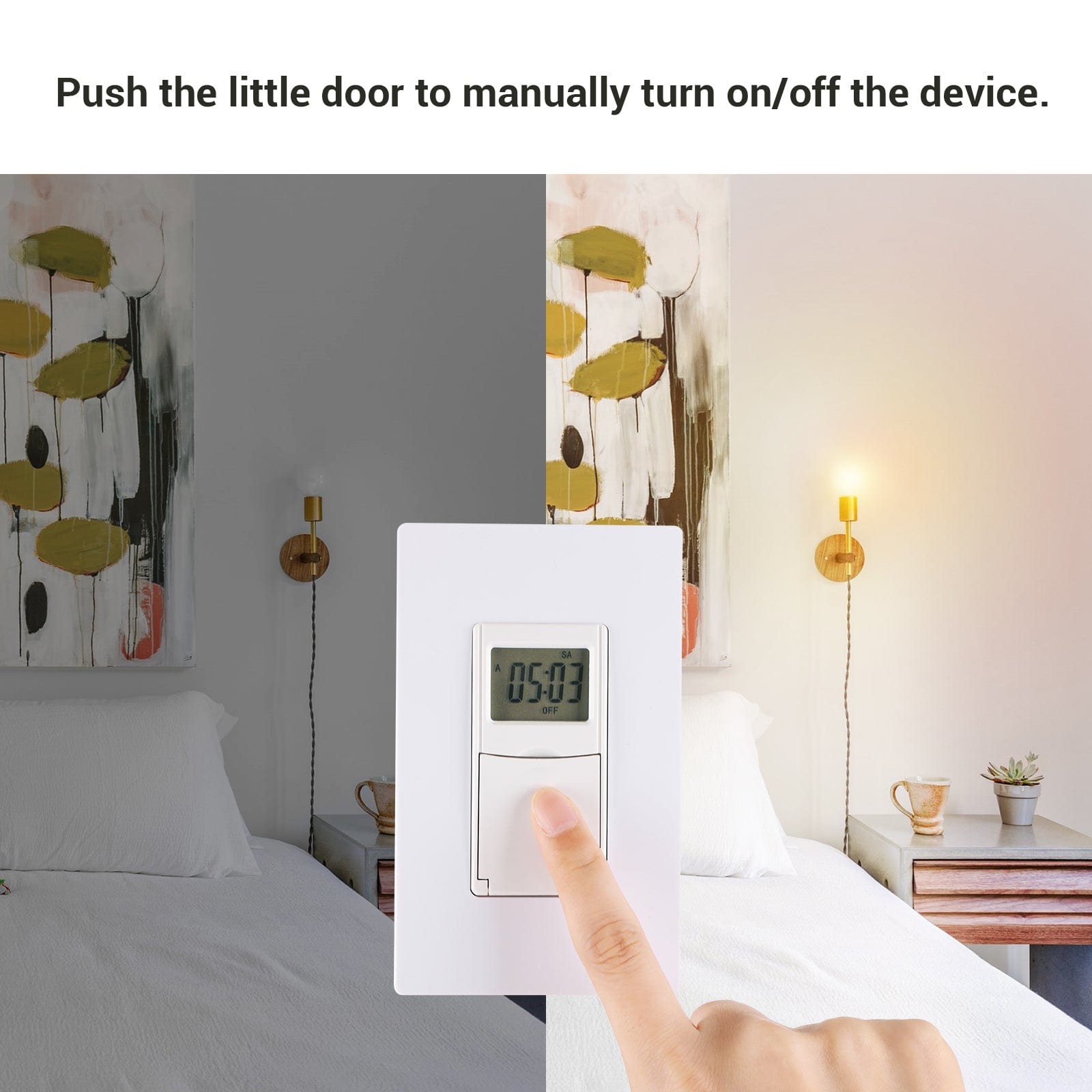

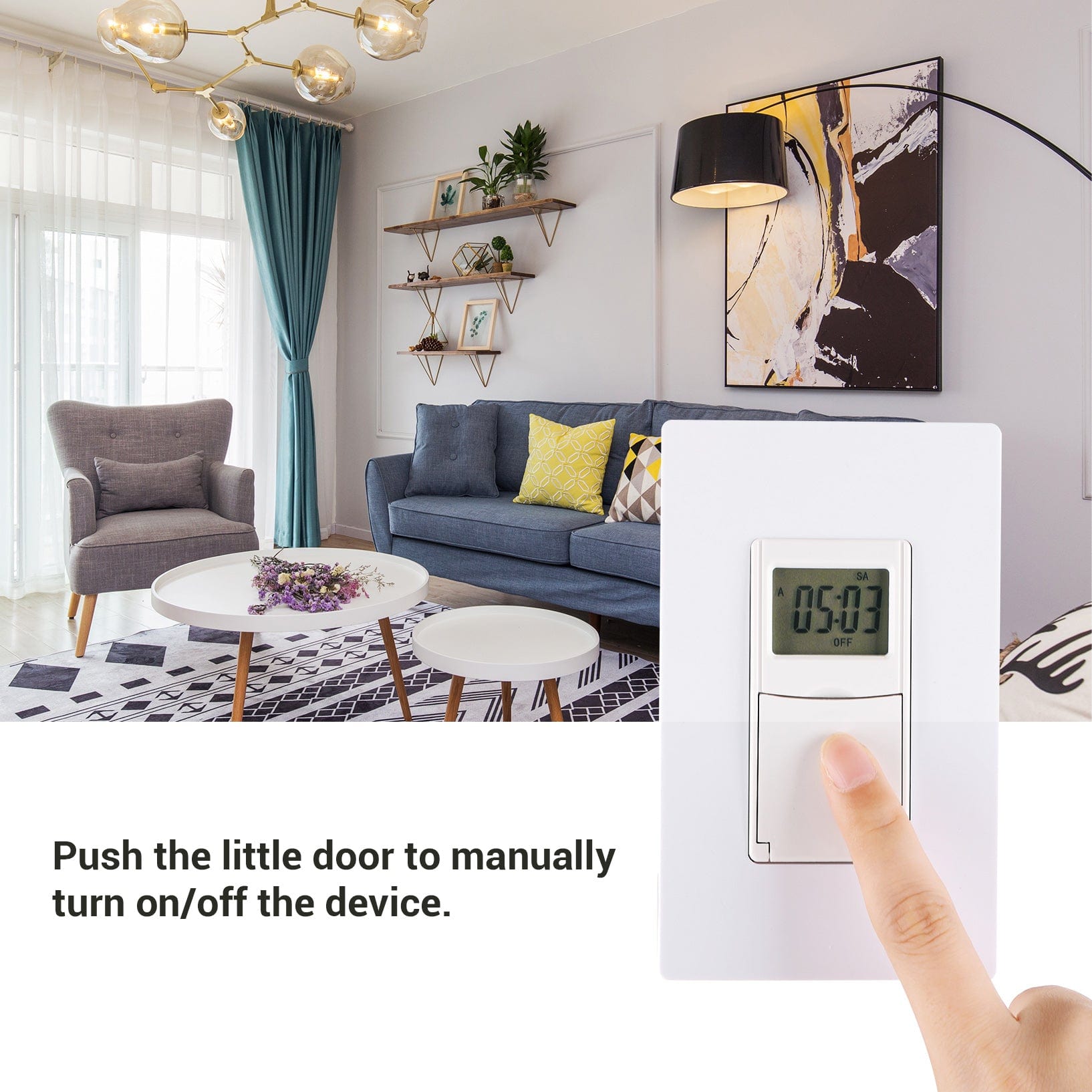

Press MANUAL or DOOR to turn on/off the switch at that time and the Auto Mode will be activated in the next setting, if you want to turn it off totally, you could clear previous settings.

Notes: If you want to change the settings or setting it for the first time, please reset it firstly.

Wiring Display

The neutral wire is not included, please prepare the neutral wire in advance before installation

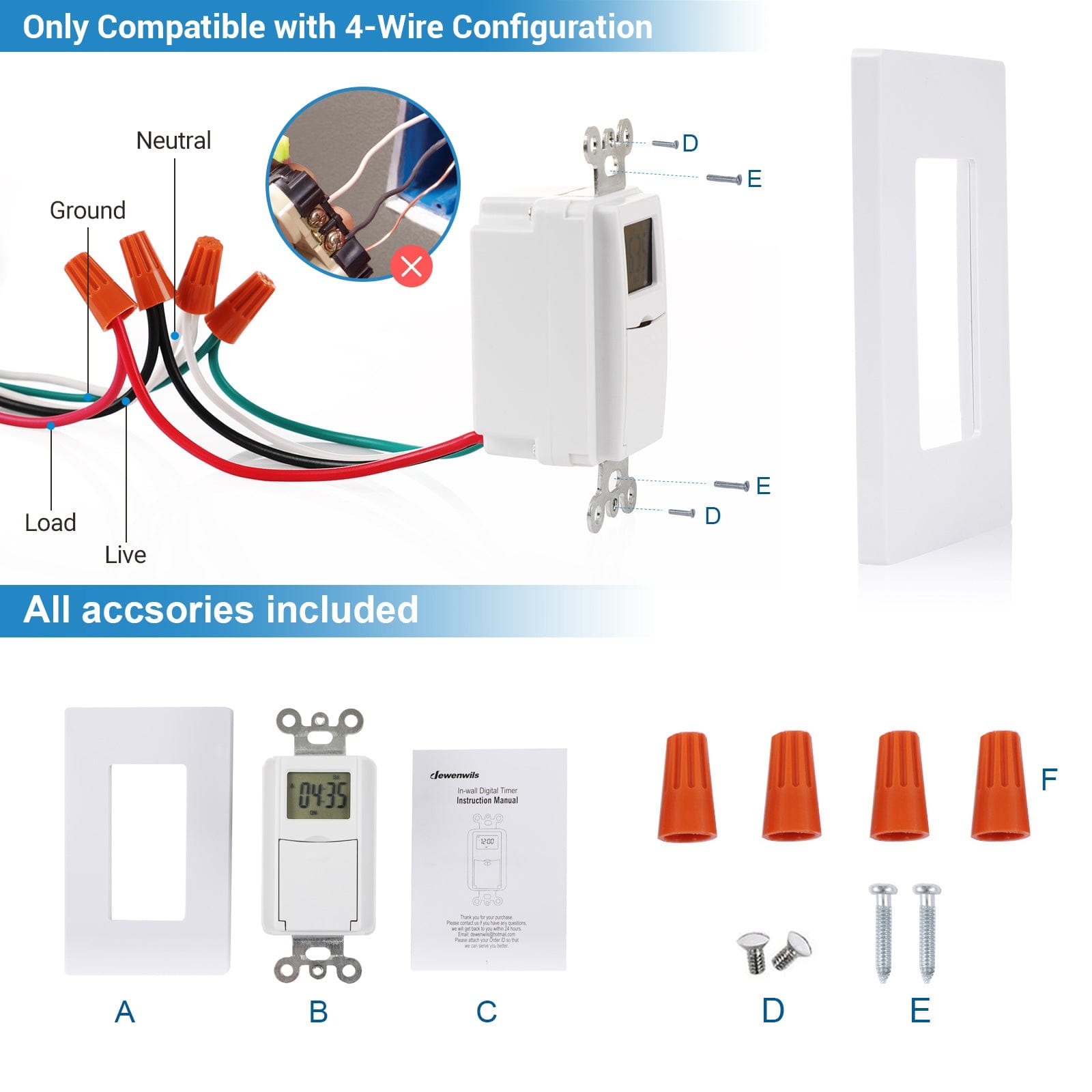

Installation Layout

Black wire connect to Live wire
White wire connect to Neutral wire
Red wire connect to Load wire
Green wire connect to Ground wire

The wiring caps could help you to tighten the wires without wired or shortted

Day Saving Time

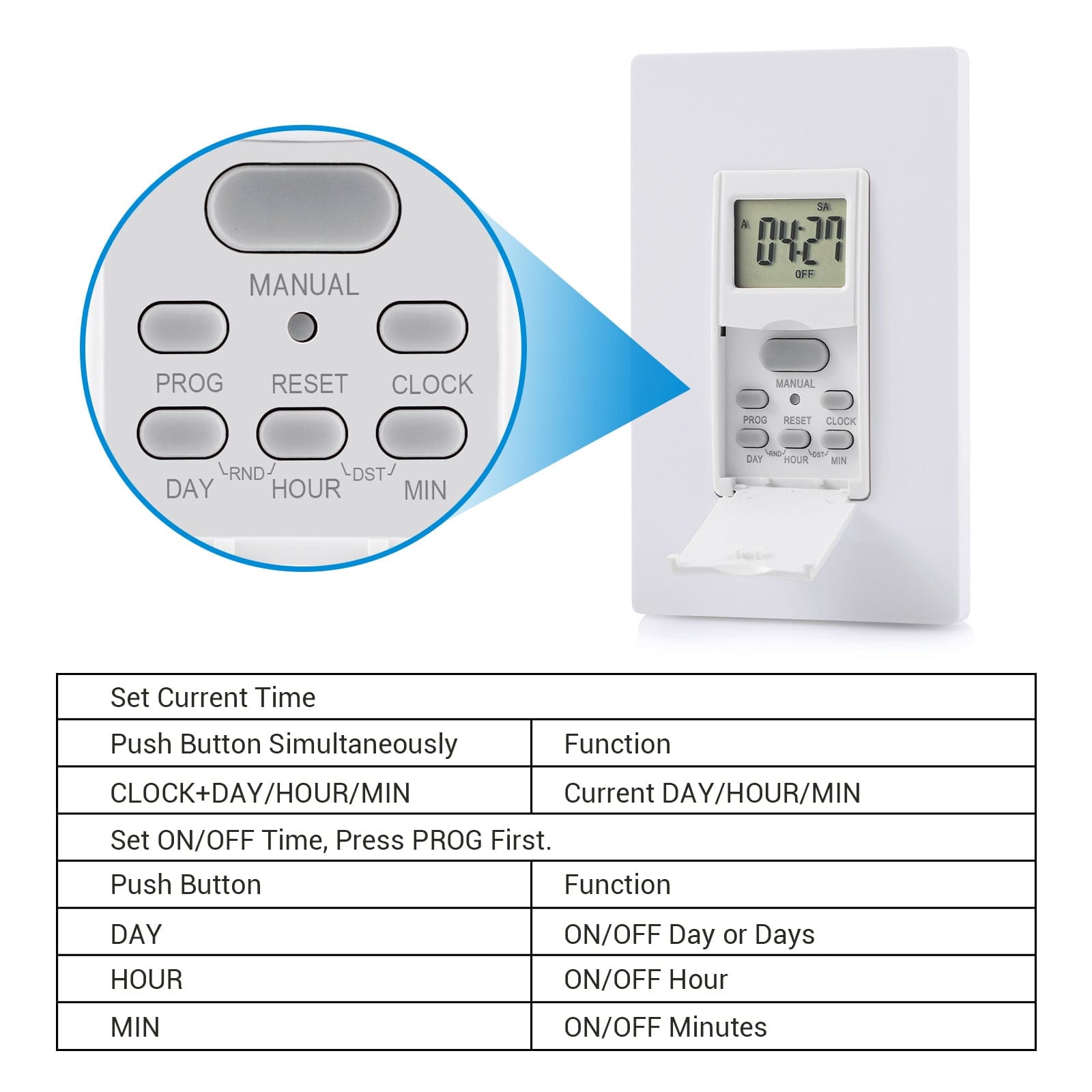

Press HOUR and MIN button simultaneously to toggle +/- 1 hour for DST mode. No need to reprogram your clock or settings.

Random Mode

Turn your devices on/off randomly within 30 minutes of your chosen time by push DAY and HOUR buttons simultaneously, which gives the impression that you are at home when you are away.

Energy Saving

Once it set, the schedual will carry out instantly, so that it could help you to turn off your device when you forget it and save costs on electricity.
