【Wide Application】This exhaust fan is ideal for a range of cooling or ventilation projects, making it a great option for both replacements and new installations. It includes 1 heavy-duty aluminum fan with a power plug cord, 2 metal grilles, and a mounting screw set. It is ready to use straight out of the box and is perfect for various applications such as refrigerators, compressors, air hockey tables, AV cabinets, and fireplaces.

【Durable & Heavy Duty】Our ventilation fan features a sturdy die-cast aluminum shell, providing durability and the ability to withstand harsh environments. The fan utilizes thermoplastic impeller blades with high flame retardancy, ensuring safe and reliable operation. It is designed to handle a maximum load of 120VAC, with a power consumption of 18W and a frequency of 60Hz.

【Long Lifespan & Excellent Heat Dissipation】UL approved and equipped with dual ball bearings, this fan ensures a service life of up to 50,000 hours of continuous operation over 7 days. With a large air volume of 90CFM, it effectively drives air circulation and provides excellent heat dissipation, keeping your equipment cool and protected. Additionally, it can be placed either flat or upright for convenience.

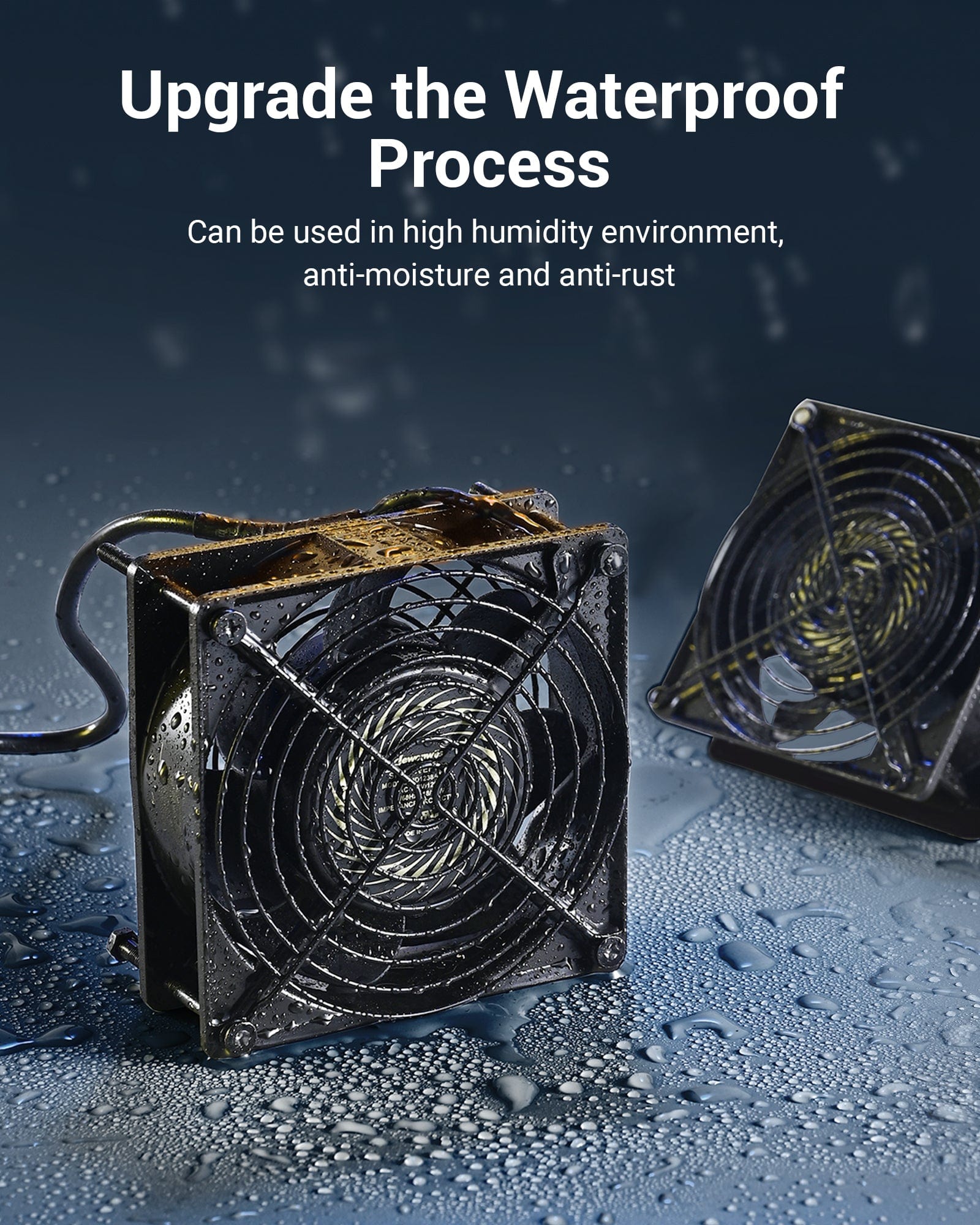

【Advanced Waterproof】Our advanced technology ensures high-quality performance. The internal parts and blades of the fan are coated with waterproof paint, making them resistant to water damage. The body of the 120mm fan is designed to be both anti-rust and waterproof, allowing for flawless operation in high humidity environments. This ensures a safe user experience and longevity of the fan's lifespan.

【Space Saving & Warranty】Measuring just 12012038mm in a compact size, this fan seamlessly fits into any desired location without compromising the overall aesthetics of the space. UL & CE listed for guaranteed quality and safety, it comes with a 1-Year Warranty. Our dedicated DEWENWILS service team is available 24/7 to assist you with any issues. Please feel free to contact us anytime.

120mm 120V AC Cooling Fan

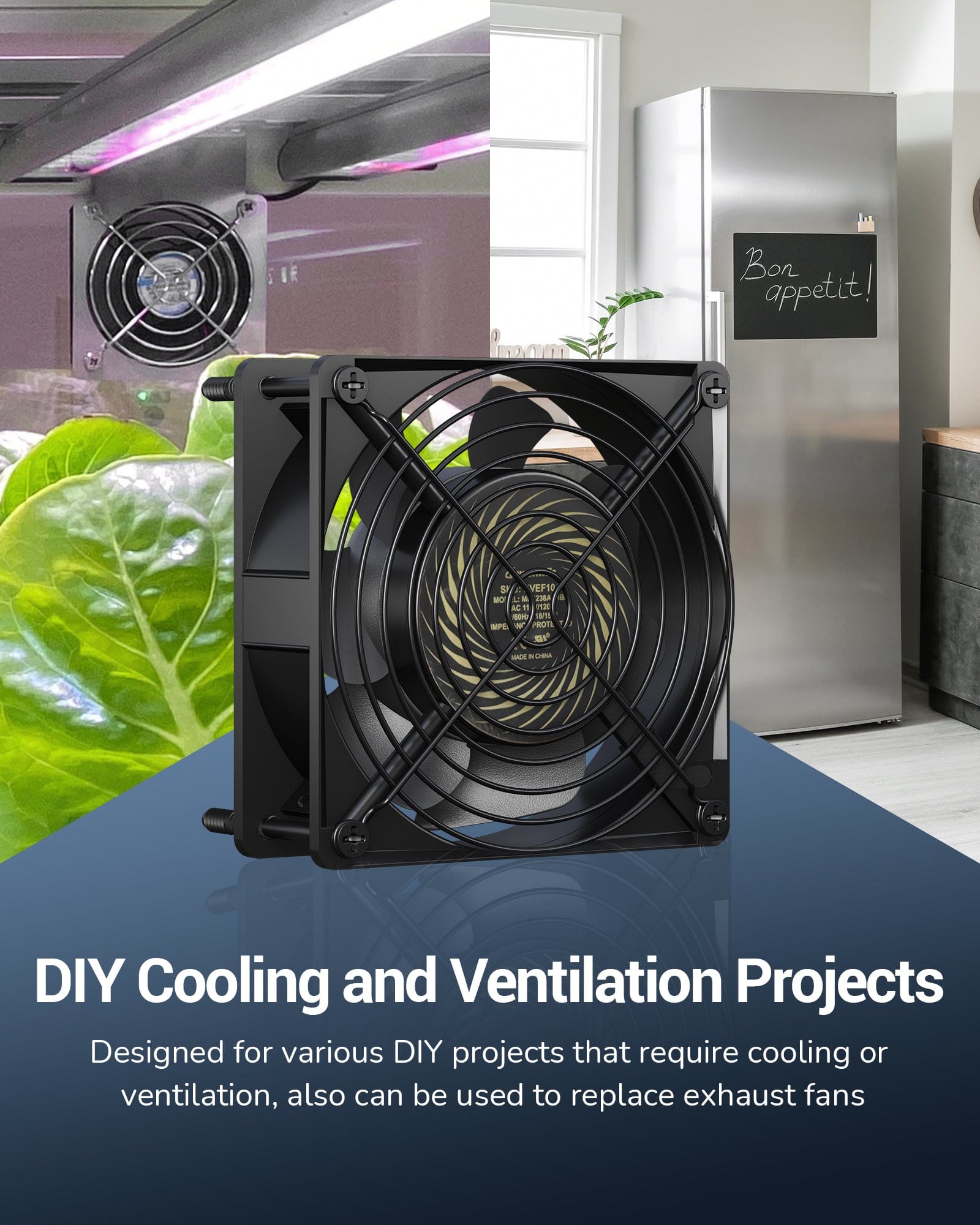

Designed for projects that requires cooling or ventilation; or as a replacement fan for various products

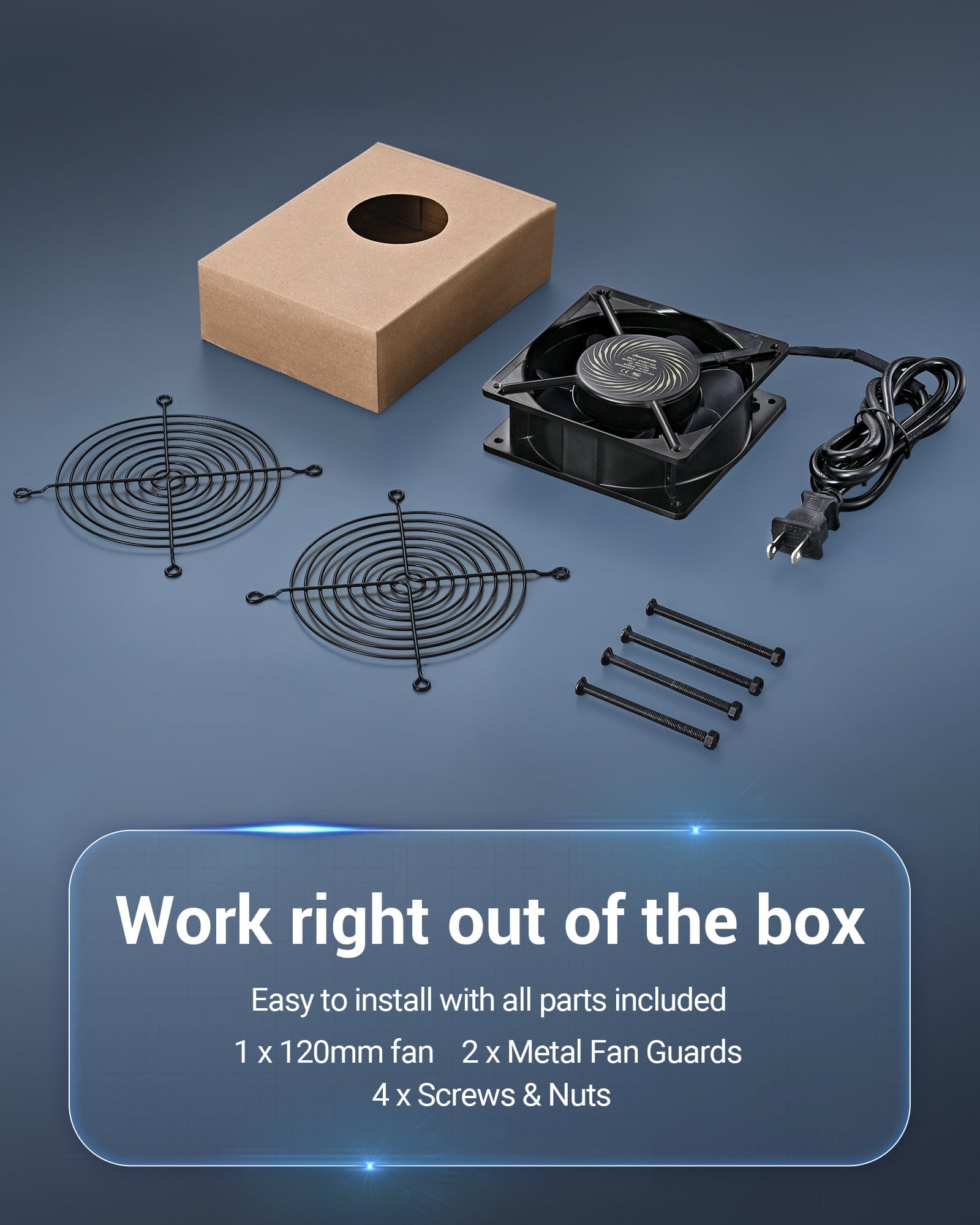

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.

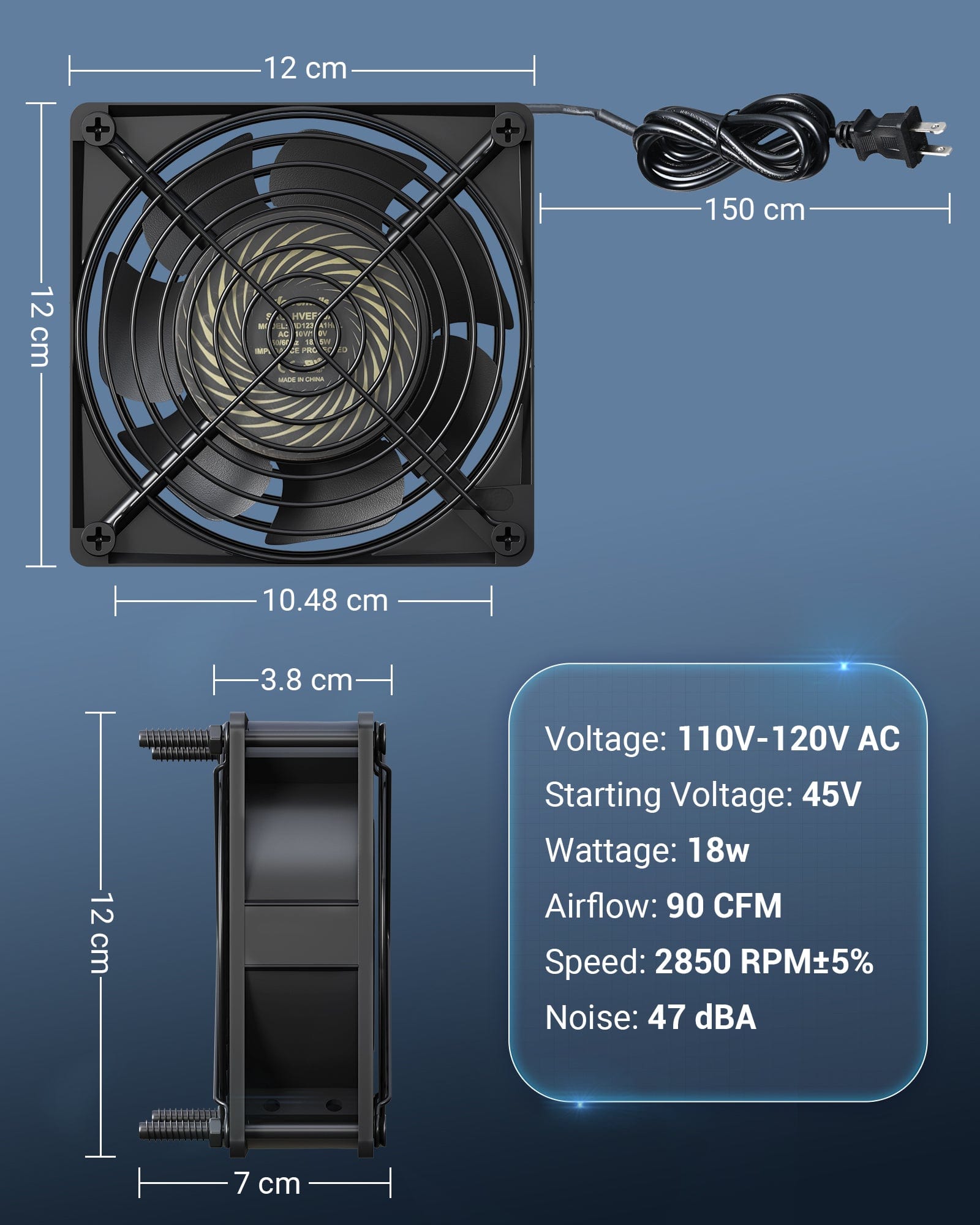

Dimension: 120x120x380mm (4.72x4.72x1.5 in)
Mounting Hole Distance: 108mm (4.25 in)
Voltage: 110V-120V AC
Starting Voltage: 45V
Wattage: 18w
Speed: 2850 RPM±5%
Airflow: 90 CFM
Noise: 47 dBA

Heavy-Duty Fans

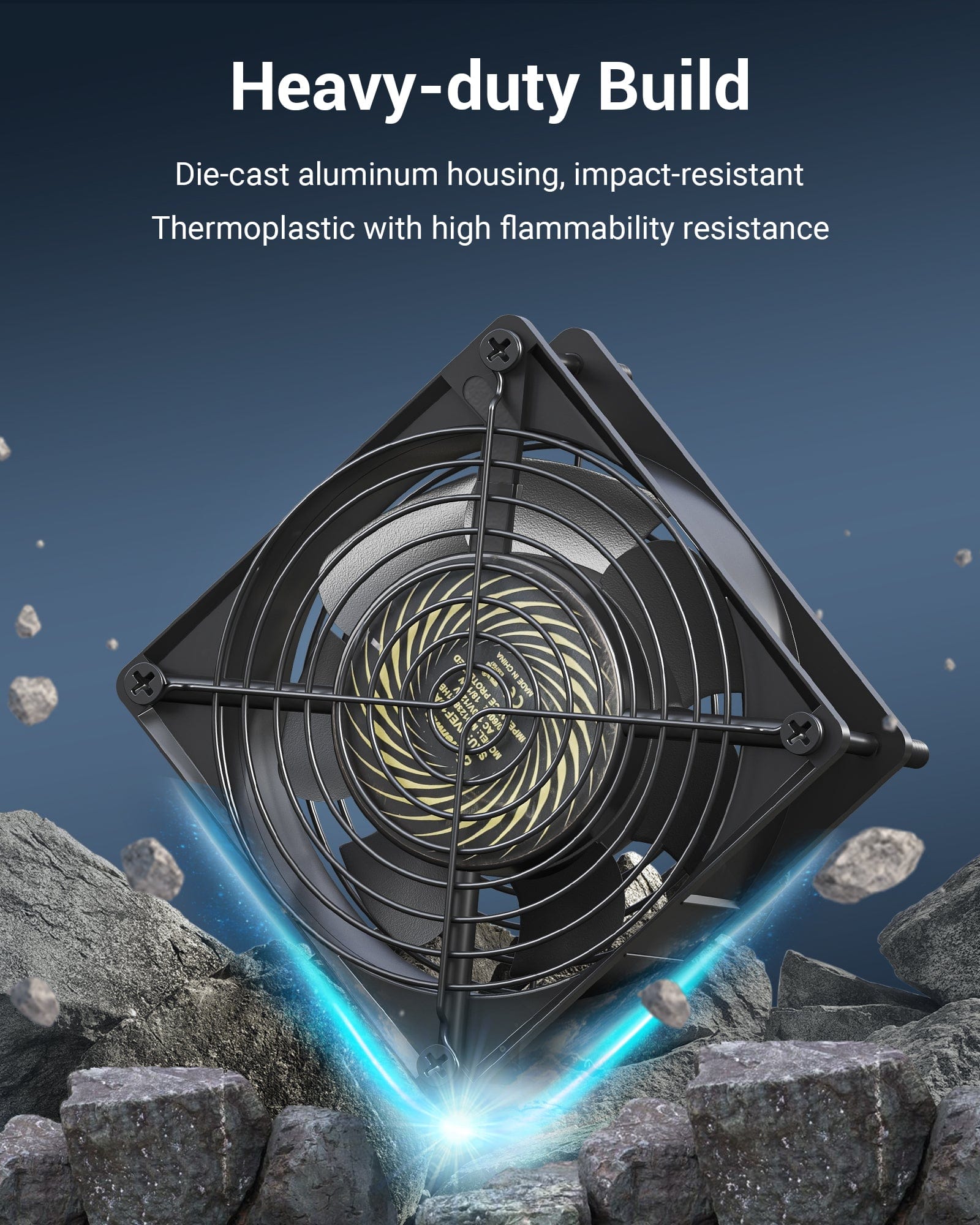

Constructed of die-cast aluminum housing, the fan can operate in harsh environments; the impeller and blades are molded with thermoplastic with high flammability resistance.

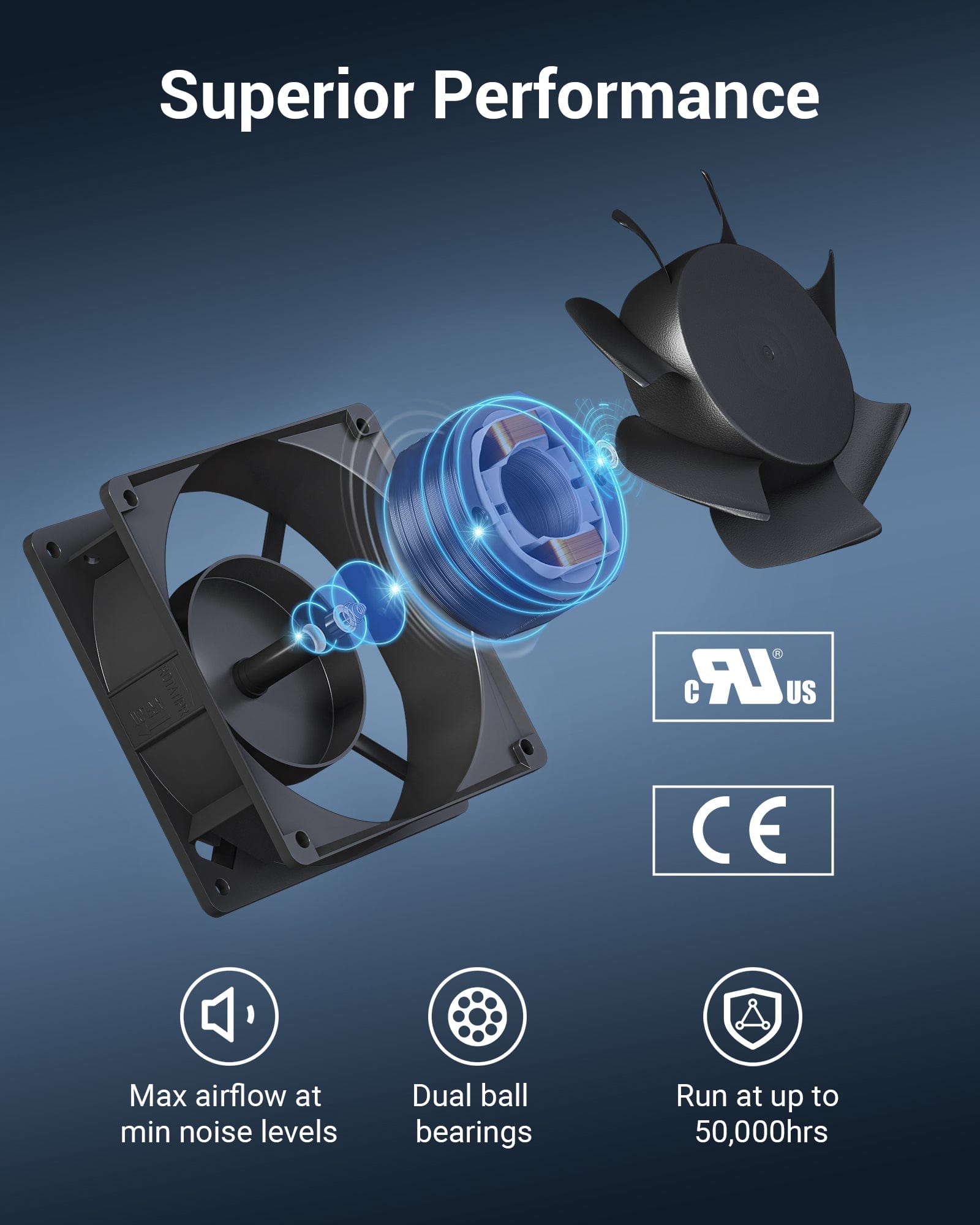

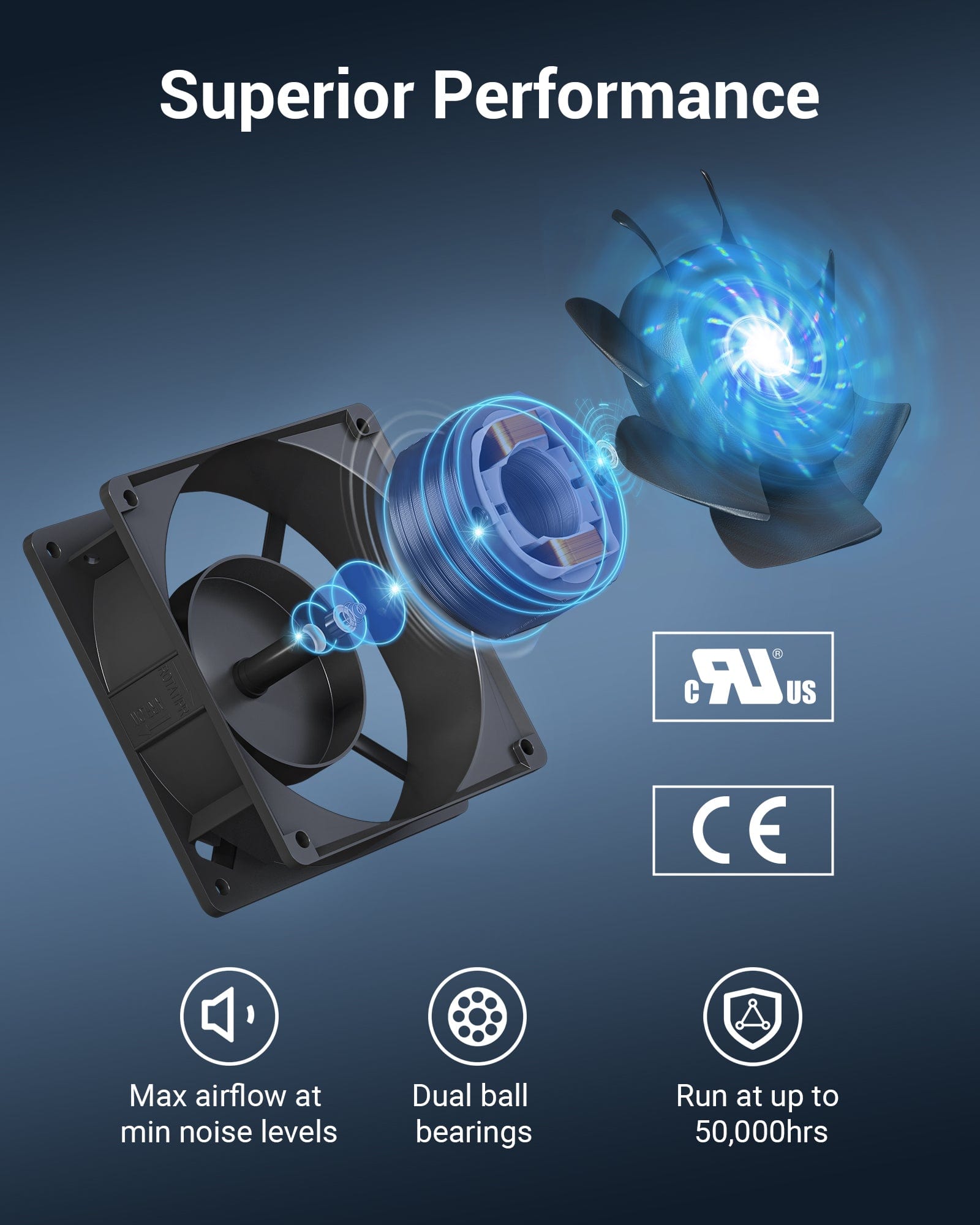

Dual-Ball Motors

Dual ball bearings motor engineered to maximize airflow at the lowest noise levels, rated at 50,000 hours, allow the fans to be mounted flat or upright.

Fan Guards Protection

Protect your fingers, and keep the fan blade without damage ; wear-resistant and not easy to break.

Plug and Play

include a 5ft 18AWG power cord, Just plug it into a outlet to start the fan. run at 110 to 120V AC.
