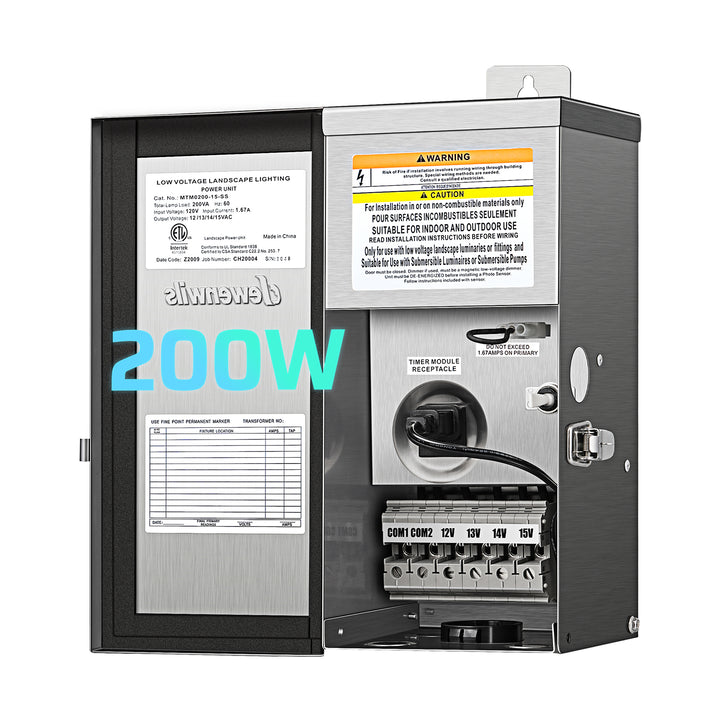

DEWENWILS 200W Multi-Tap Low Voltage Transformer, 120V AC to 12V/13V/14V/15V AC,Stainlees Steel Shield, for Landscape Lighting, Spotlight, Pathway Light-F1SHOSL04B1

【Multi-tap Output】 200W, convert 120V AC household voltage to 12V/13V/14V/15V safety voltage, providing a safer and more practical electrical current level. Multi-tap output design, enables you to add/subtract new circuits for conencting with your lighting around house.
【Durable & Waterproof】Heavy duty stainless steel, protects the transformer against all severe weather conditions. Durable shield with locking latch, tightly locked to prevent water from entering, withstands years of use.
【Easy to Install】Remove the knockout or the black lid at the bottom to thread your wire out for use. Built-in hanging hole, 6ft SJTW 18AWG power cord, mount it on indoor/outdoor walls directly.
【Work with Timer & Sensor】Timer & photocell port available, enable you to add your photocell sensor(Not Included) and timer(Sold Seperately) for sensing and timing functions. You can also connect the transformer in your smart plug for use.
【Automatic Circuit Breaker】Built-in automatic circuit breaker, it will provide overload and short circuit protection effectively. The total power of the landscape lighting should not exceed 80% of the power pack’s capacity.

How to Choose Your Transformer？

1.Calculate the total wattage of your light fixtures in your plan.

2.Choose the transformer that is large enough to support the total wattage you need.

3.The transformer wattage load (total watts needed for your fixtures) should be within 80% of the rated capacity of the transformer.

For example: if you have 7 pack 13W landscape lights, so the total wattage is 91W. Then you can choose the transformer higher than 113W(=91W/0.8).

Specifications

Input: 120VAC, 60Hz
Output: 12V/13V/14V/15V AC
Maximum Rated Current: 25A
Cord: 6ft, SJTW 18AWG/3C

Multi-Tap Output

Choose 12V/13V/14V/15V terminal outputs according to the length and wire gauge of your cable, make sure that the total wattage of your landscape lights Does not exceed 160W (200Wx0.8)

Timer & photocell port available

The transformer enables you to add your photocell sensor( Sold Seperately) and smart plug/timer(Sold Seperately) for sensing and timing functions.

Durable & Waterproof

Heavy duty stainless steel material, durable shield with locking latch, protect the transformer against all severe weather conditions.

Easy to Install

Remove the knockout or the black lid at the bottom to thread your wire out for use. Built-in hanging hole, 6ft SJTW 18AWG power cord, mount it on indoor/outdoor walls directly.

120V AC to 12/13/14/15V AC

Convert 120V AC household voltage to 12/13/14/15V AC safety voltage, providing a safer and more practical electrical current level. Equipped with two outputs with a total power of 200W. You can choose any of them to connect with your cable.

Wide Range of Applications

Compatible with low voltage halogen & LED landscape lighting, like spotlight, pathway light, garden light, water feature etc
