DEWENWILS 300W Multi-Tap Low Voltage Transformer, 120V AC to 12V/13V/14V/15V AC,Stainlees Steel Shield, Outdoor Transformer for Low Voltage Landscape Lighting, Spotlight, Pathway Light-HOSL05F

BEFORE YOU BUY IT, YOU SHOULD READ THIS!

How to Choose Your Transformer？

1.Calculate the total wattage of your light fixtures in your plan.

2.Choose the transformer that is large enough to support the total wattage you need.

3.The transformer wattage load (total watts needed for your fixtures) should be within 80% of the rated capacity of the transformer.

For example: if you have 7 pack 13W landscape lights, so the total wattage is 91W. Then you can choose the transformer higher than 113W(=91W/0.8).

What Cable and How Long should I use to connect with transformer?

Please refer to this following cable slection chart, it will help you with it.

----------------------------------------------------------------------

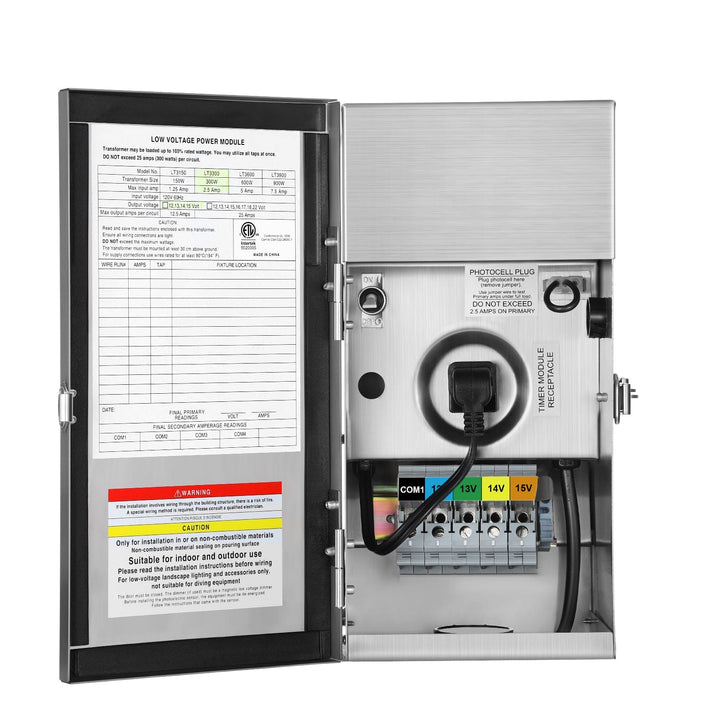

【Multi-tap Output】The transformer has a 300W capacity and converts standard 120V AC household voltage to a safer 12V/13V/14V/15V AC level. This provides a practical and safe electrical current. In addition, the multi-tap output design allows you to add or subtract new circuits for connecting to your lighting around the house.

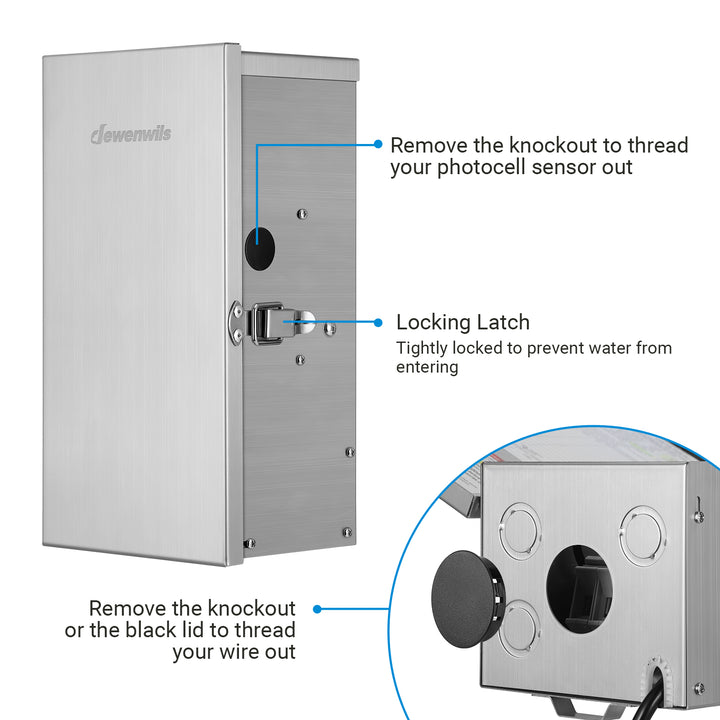

【Durable & Waterproof】The heavy-duty stainless steel construction protects the transformer from severe weather conditions. The durable shield features a locking latch that is tightly secured to prevent water from entering, ensuring years of use.

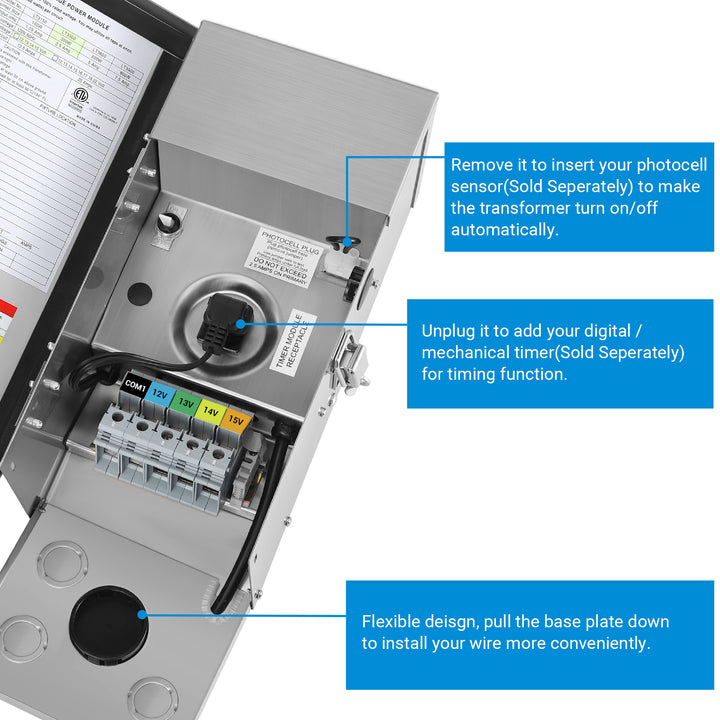

【Easy to Install】To use, remove the knockout or black lid at the bottom to thread your wire. The transformer also has a built-in hanging hole and comes with a 6ft SJTW 18AWG power cord, making it easy to mount directly on indoor/outdoor walls.

【Work with Timer & Sensor】The transformer has a timer and photocell port available, allowing you to connect your photocell sensor (not included) and timer (sold separately) for sensing and timing functions. You can also connect the transformer to your smart plug for additional convenience.

【Automatic Circuit Breaker】The transformer has a built-in automatic circuit breaker that provides effective overload and short circuit protection. It's important to note that the total power of the landscape lighting should not exceed 80% of the power pack's capacity.

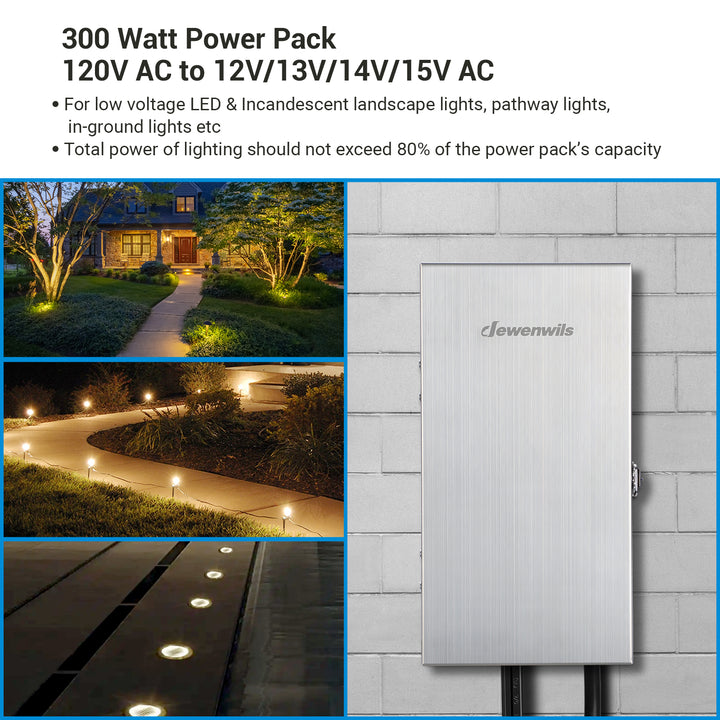

300W Low Voltage Transformer-120V AC to 12V/13V/14V/15V AC

How to Choose Your Transformer:

1.Calculate the total wattage of your light fixtures in your plan.

2.Choose the transformer that is large enough to support the total wattage you need.

3.The transformer wattage load (total watts needed for your fixtures) should be within 80% of the rated capacity of the transformer.

For example: if you have 15 pack 13W landscape lights, so the total wattage is 195W. Then you can choose the transformer higher than 244W(=195W/0.8).

Specifications:
Input: 120VAC, 60Hz
Output: 12V/13V/14V/15V AC
Maximum Rated Current: 33.75A
Cord: 6ft, SJTW 18AWG/3C

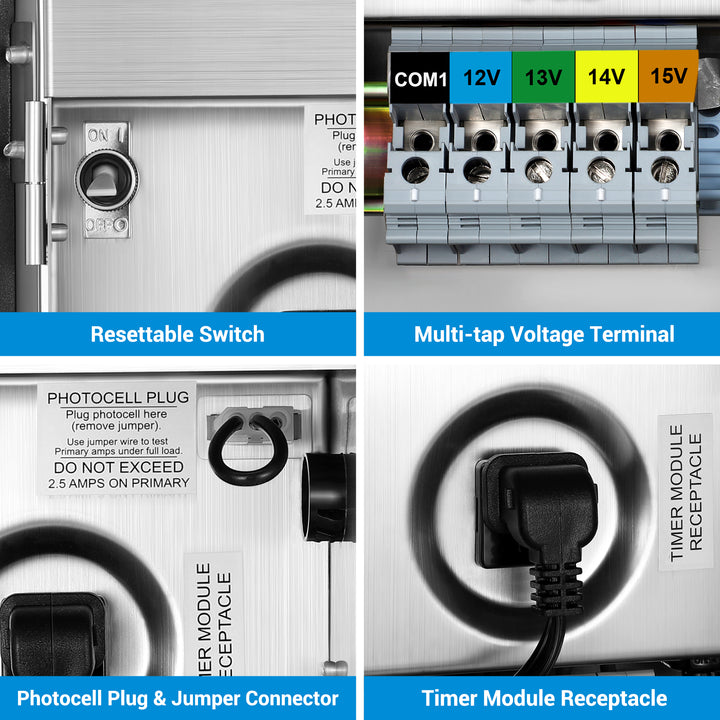

Multi-Tap Output

Choose 12V/13V/14V/15V terminal outputs according to the length and wire gauge of your cable, make sure that the total wattage of your landscape lights does not exceed 240W(300Wx0.8)

Timer & photocell port available

The transformer enables you to add your photocell sensor(Not Included) and smart plug/timer(Sold Seperately) for sensing and timing functions.

Durable & Waterproof

Heavy duty stainless steel material, durable shield with locking latch, protect the transformer against all severe weather conditions.
