DEWENWILS 600W Low Voltage Transformer with Timer and Photocell Sensor, 120V AC to 12V/13V/14V/15V AC for LED Lighting, Walkway Light-SHOSL08A

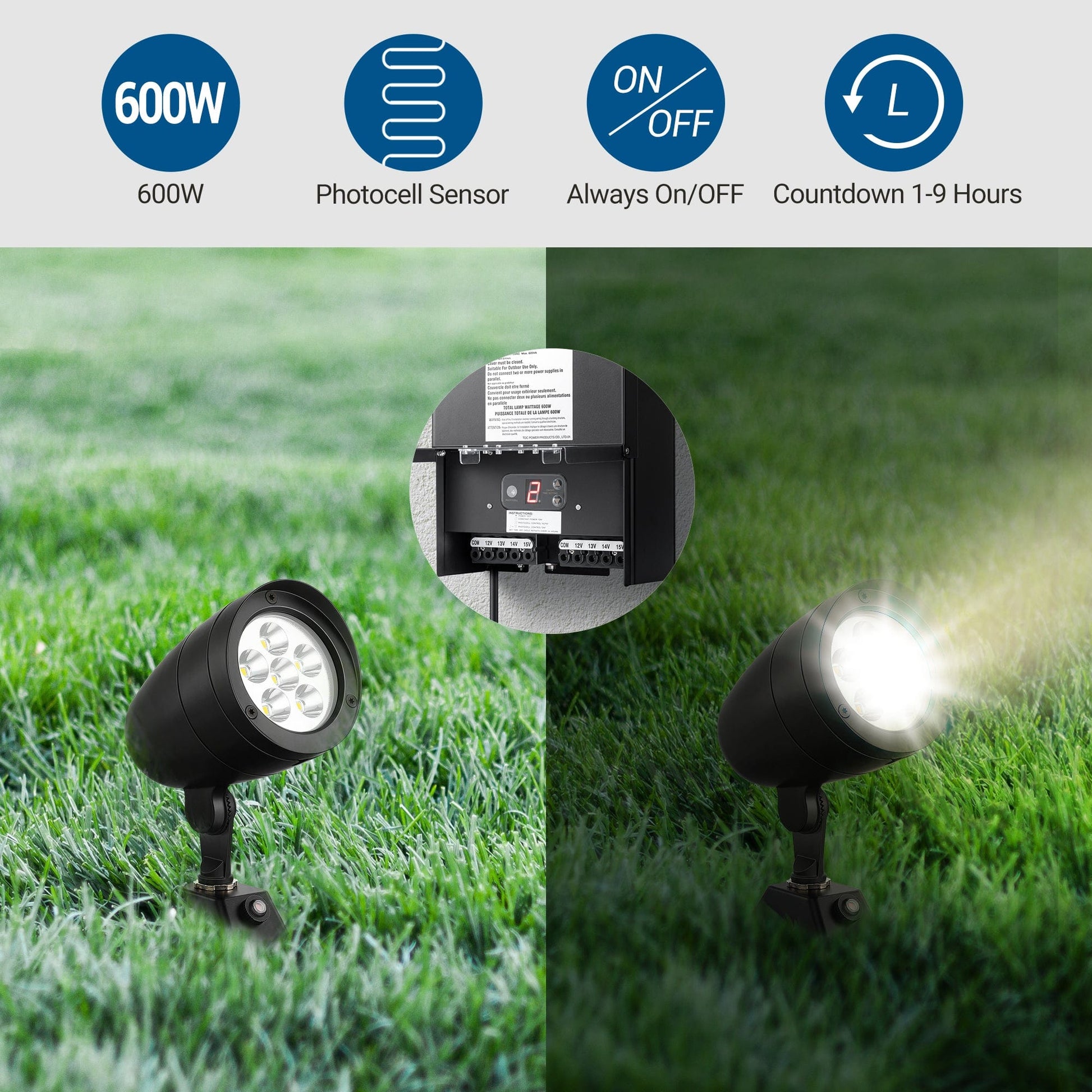

【Built-in Dusk to Dawn Sensor】Landscape lighting that is connected to this transformer will automatically switch on at dusk and off at dawn. By converting household voltage from 120V AC to a safer 12V/13V/14V/15V AC using 300W, it delivers a more reliable and useful electrical current level.

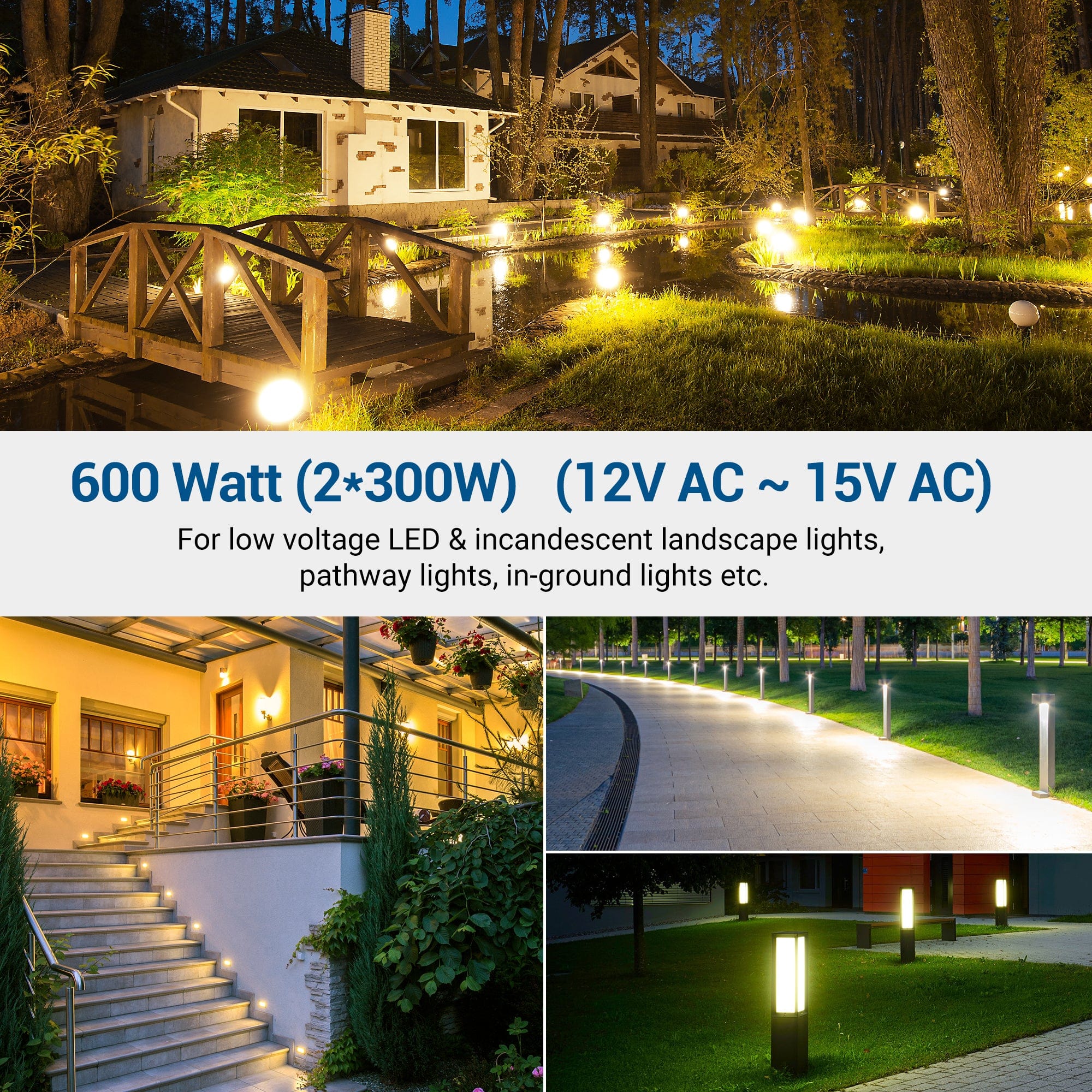

【Countdown Timer】The 600W Low Voltage Landscape Transformer features a 1-9 hour countdown for light control timing. It turns on at dusk and automatically shuts off after the designated time, making it both convenient and energy efficient. Ideal for landscape lights, such as deck lights, string lights, garden or yard decor, and water features, the transformer delivers safer electrical current with 600W, converting household voltage from 120V AC to 12V/13V/14V/15V AC.

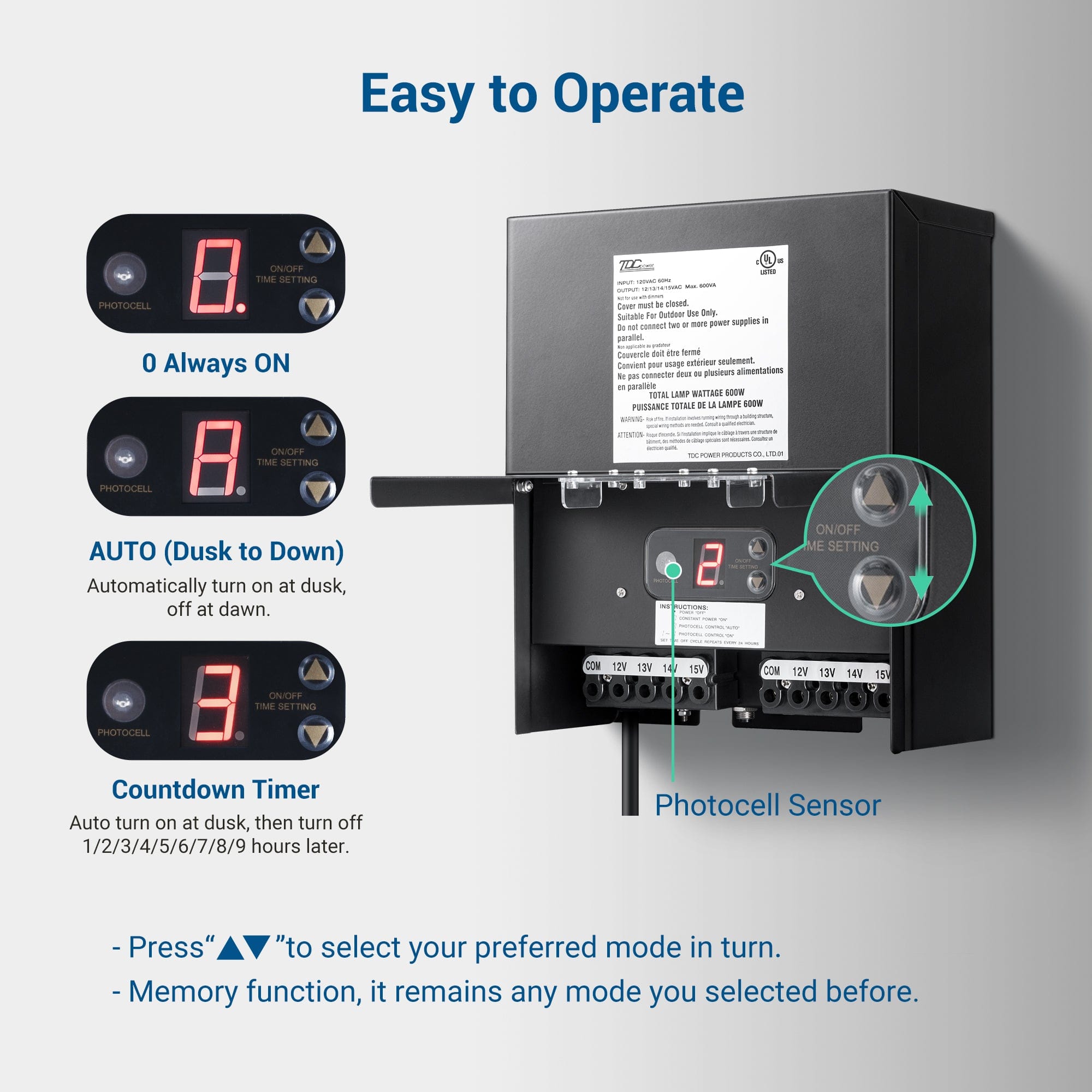

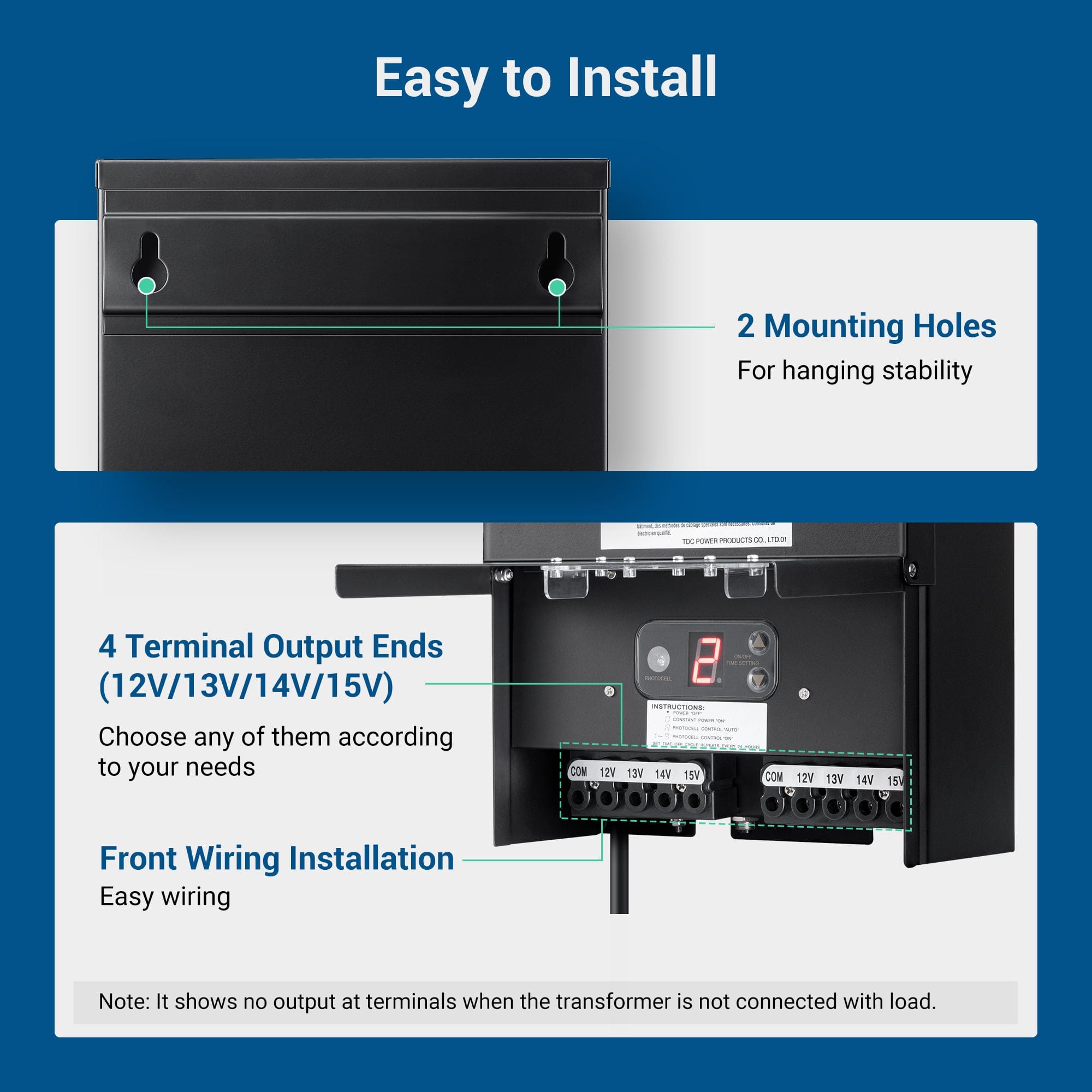

【Easy to Operate and Install】The 600W Low Voltage Landscape Transformer includes Always On, Auto, or Countdown Timing modes, which can be selected using the up/down arrow. Built-in mounting holes and a 3.3-foot STJW 18AWG power cord allow for direct wall mounting on outdoor walls. In case of an overload, the manual reset circuit breaker ensures safety by tripping automatically.

【Memory Function】The 600W Low Voltage Landscape Transformer features a memory function, allowing it to retain the selected setting even in case of power loss. To activate this feature, the transformer needs to operate in this mode for at least 24 hours. This means you won't need to frequently adjust the transformer settings.

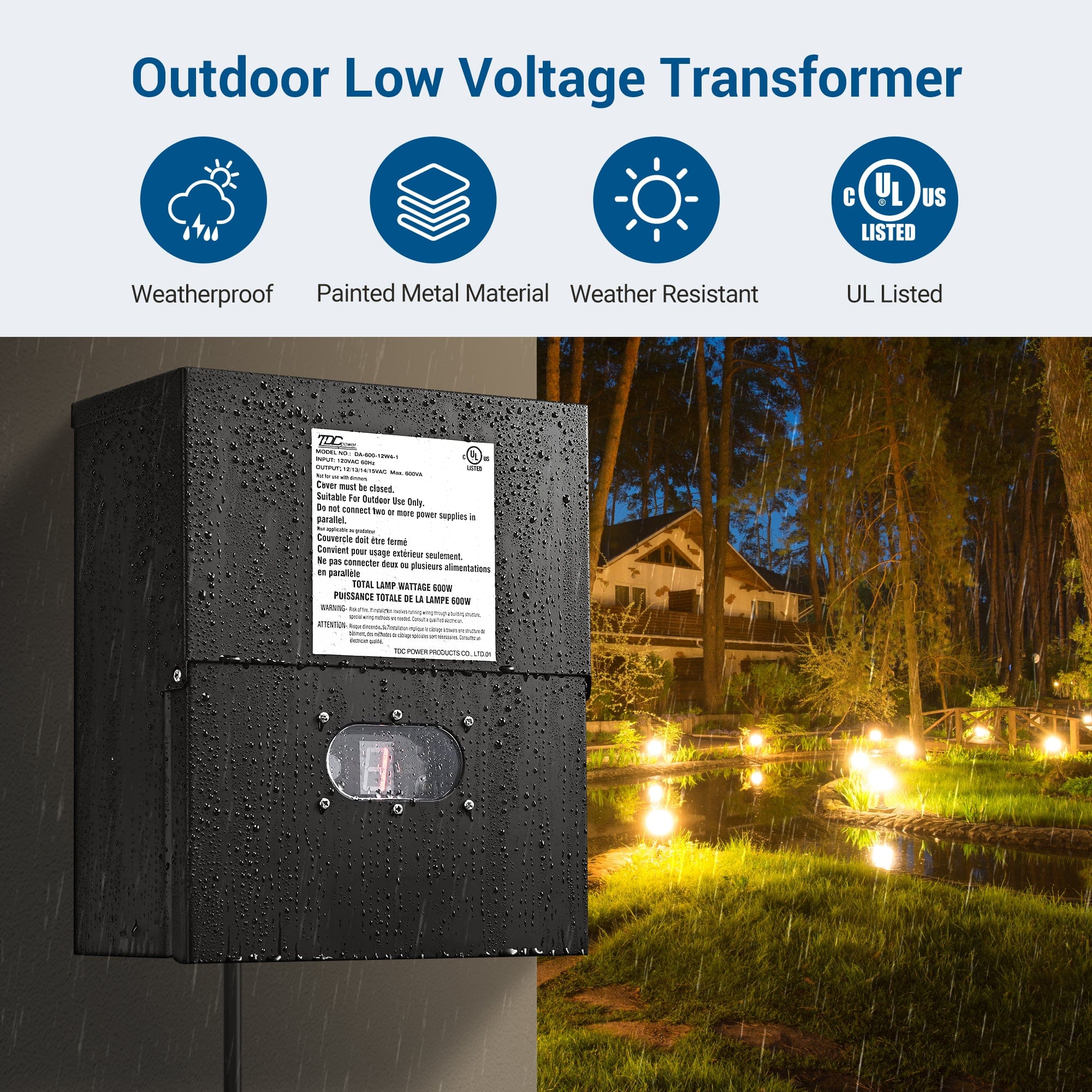

【Durable and Waterproof】The 600W Low Voltage Landscape Transformer is made of high-performance metal material that is corrosion-resistant and can withstand years of usage, shielding the transformer from extreme weather conditions. For optimal performance, landscape lighting should not exceed 80% of the power pack's capacity.

600W Low Voltage Transformer

How to Choose Your Transformer:

1.Calculate the total wattage of your light fixtures in your plan.

2.Choose the transformer that is large enough to support the total wattage you need.

3.The transformer wattage load (total watts needed for your fixtures) should be within 80% each zone of the rated capacity of the transformer.

For example: if you have 15 pack 13W landscape lights, so the total wattage is 195W. Then you can choose the transformer higher than 244W(=195W/0.8).

Specifications:
Input: 120VAC, 60Hz
Output: 12VAC~15VAC
Max Power Rating: 600W

"O"--"Always On" Mode

The landscape lights that are connected with the transformer will be on throughout the day. The dot(at the bottom right corner of the number on the display screen) will light on when it works.

The sequence of the mode is ON-Auto-Countdown Timer（1-9 hours）-OFF.

“A”--“Auto” Mode

The landscape lighting will turn on automatically at dusk and off at dawn.

It you want to test it on daytime, you can cover the sensor for over 30S, the sensor will detect it is nightime, then the light will turn on.

Countdown Timer (1-9 Hours)

Light control timing, with this mode, the transformer will automatically turn on at dusk and automatically turn off 1/2/3/4/5/6/7/8/9 hours later.

It you want to test it on daytime, you can cover the sensor for over 30S, the sensor will detect it is nightime, then the light will turn on.

2 zone synchronization control

each zone has Max.output power: 300W

the safest power < 80% each zone
