DEWENWILS 60 Watt Outdoor Low Voltage Transformer with Timer and Photocell Light Sensor, 120V AC to 12V AC, Weatherproof for Landscape Lighting, Pathway, Garden Light, Spotlight-F1SHOSL02B

BEFORE YOU BUY IT, YOU SHOULD READ THIS!

How to Choose Your Transformer？

1.Calculate the total wattage of your light fixtures in your plan.

2.Choose the transformer that is large enough to support the total wattage you need.

3.The transformer wattage load (total watts needed for your fixtures) should be within 80% of the rated capacity of the transformer.

For example: if you have 7 pack 13W landscape lights, so the total wattage is 91W. Then you can choose the transformer higher than 113W(=91W/0.8).

What Cable and How Long should I use to connect with transformer?

Please refer to this following cable slection chart, it will help you with it.

----------------------------------------------------------------------

【Built-in Dusk to Dawn Sensor】Attached with this transformer, the landscape lighting will turn on automatically at dusk and off at dawn. 60W, convert 120V AC household voltage to 12V AC safety voltage, providing a safer and more practical electrical current level.
【4H/6H/8H Countdown Timer】Switch it to set 4/6/8 hour countdown easily, so it will turn on at dusk and automatically turn off 4/6/8 hours later, convenient for controlling your landscaping lights.

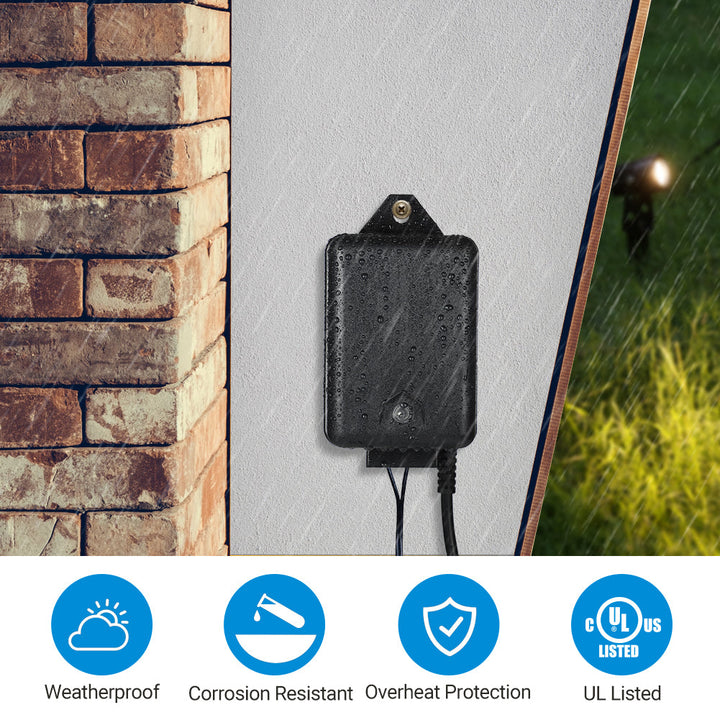

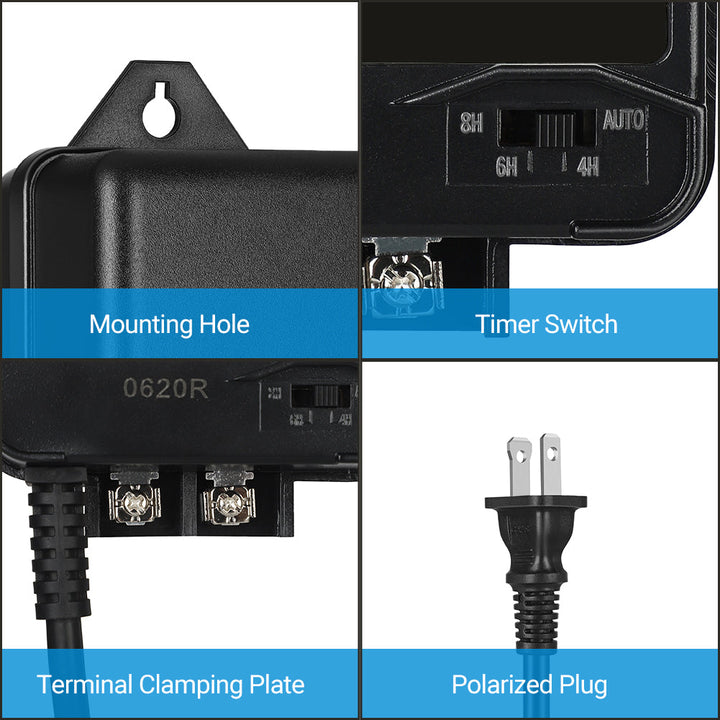

【Easy Installation & Weatherproof】Built-in hanging hole, 3.3ft power cable, mount it on outdoor walls directly. Molded weatherproof body, protects the transformer from rain, snow, dust and abrasion, withstands years of use.
【Automatic Circuit Breaker】Overheat protection, it will automatically cut off the power if the operating temperature exceeds 115°. Compact and lightweight, easily hidden, will not affect the appearance of your yard.
【Wide Application】Compatible with low voltage halogen & LED landscape lighting, like spotlight, pathway light, garden light, water feature etc. The total power of the lighting should not exceed 80% of the power pack’s capacity.

How to Choose Your Transformer?

1. Calculate the total wattage of your LED light fixtures in your plan.

2. Choose the transformer that is large enough to support the total wattage you need.

3. The transformer wattage load (total watts needed for your fixtures) should be within 80 percent of the rated capacity of the transformer.

For example: if you have 8 pack 5W LED landscape lights, so the total wattage is 40W. Then you can choose the transformer higher than 50W(=40W/0.8).

Specifications

Input: 120V AC, 60Hz
Output: 12V AC
Max Power Rating: 60W

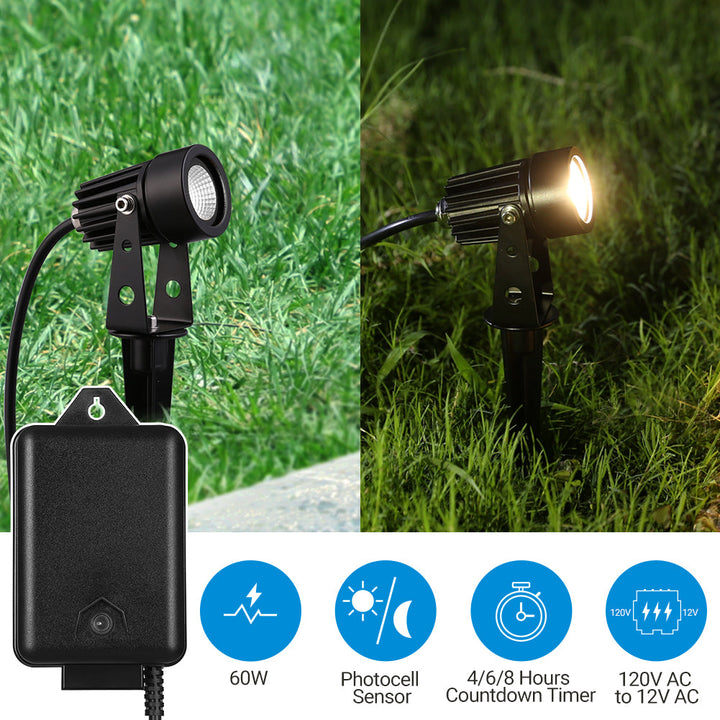

Built-in Dusk to Dawn Sensor

Attached with this transformer, the landscape lighting will turn on automatically at dusk and off at dawn.

Countdown Timer

Switch it to set 4/6/8 hour countdown easily, so it will turn on at dusk and automatically turn off 4/6/8 hours later.

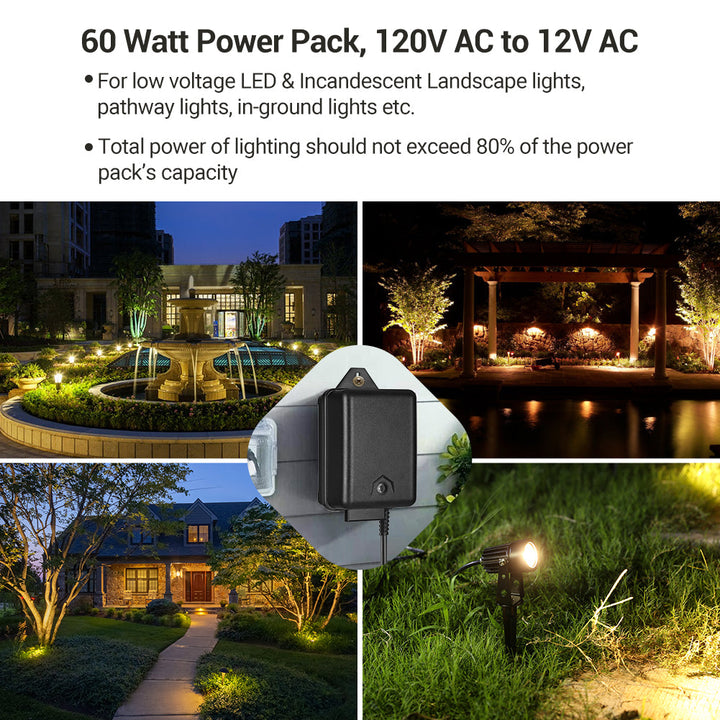

Convert 120V AC to 12V AC

60 Watt, convert 120V AC household voltage to 12V AC safety voltage, providing a safer and more practical electrical current level.

Wide Application

Compatible with low voltage halogen & LED landscape lighting, like spotlight, pathway light, garden light, water feature etc

Wide Application

Compatible with low voltage halogen & LED landscape lighting, like spotlight, pathway light, garden light, water feature etc

Wide Application

Compatible with low voltage halogen & LED landscape lighting, like spotlight, pathway light, garden light, water feature etc
