DEWENWILS 200W Wi-Fi Low Voltage Transformer, 3 Independent Outputs, 120V AC to 12V/14V AC, Low Voltage Landscape Transformer with Schedule & Timer, Work with Alexa & Google Assistant-HWLT04A
120V AC to 12V/14V AC
3 Independent Control Zones
Remote APP & Voice Control
5 Timer modes
Overload Protection & Memory Function
Guaranteed Safe Checkout
BEFORE YOU BUY IT, YOU SHOULD READ THIS!
How to Choose Your Transformer？
1.Calculate the total wattage of your light fixtures in your plan.
2.Choose the transformer that is large enough to support the total wattage you need.
3.The transformer wattage load (total watts needed for your fixtures) should be within 80% of the rated capacity of the transformer.
For example: if you have 7 pack 13W landscape lights, so the total wattage is 91W. Then you can choose the transformer higher than 113W(=91W/0.8).
What Cable and How Long should I use to connect with transformer?
Please refer to this following cable slection chart, it will help you with it.

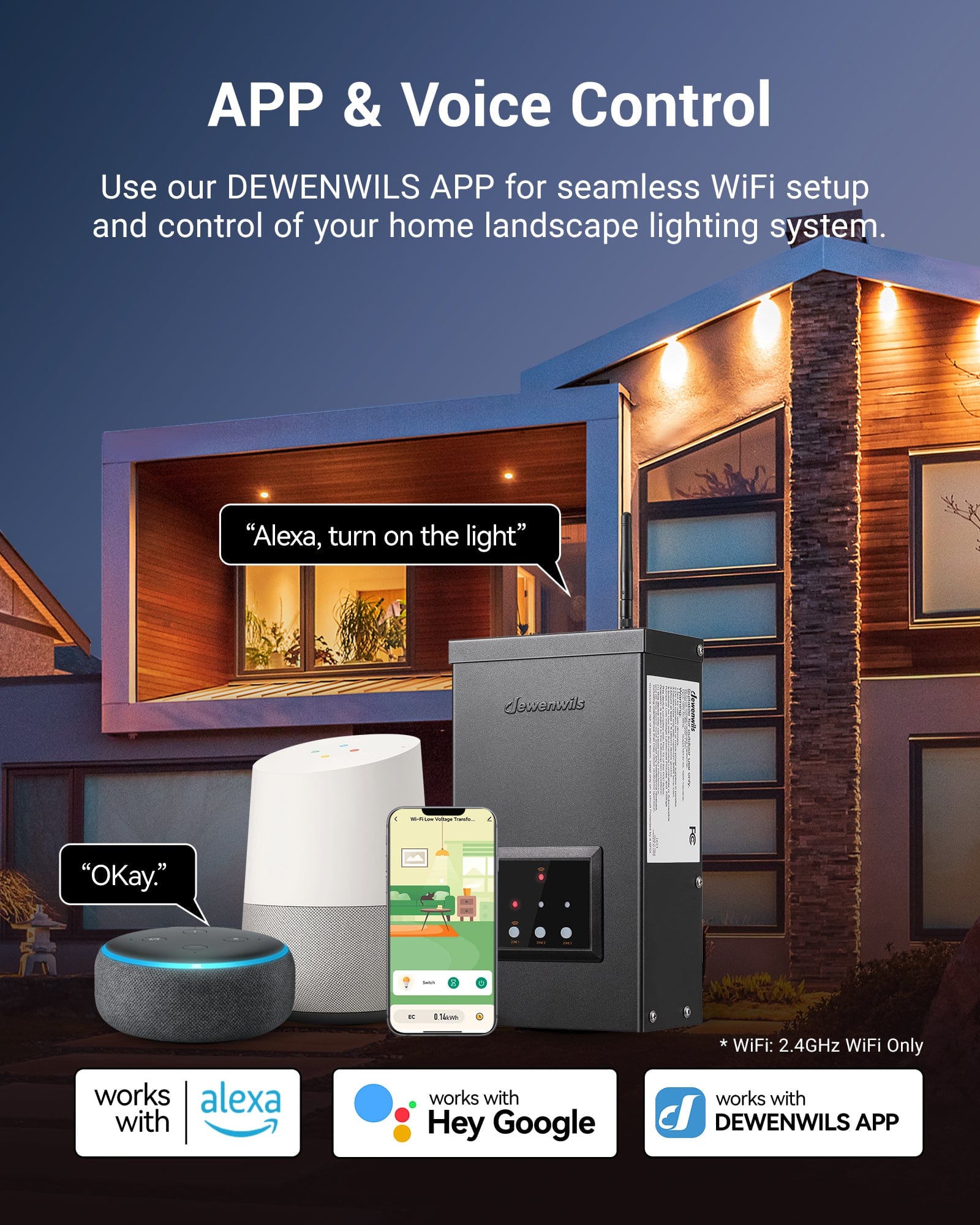

【Remote APP & Voice Control】Wireless Control with DEWENWILS App & Smart Life App: The landscape lighting transformer allows you to control yard lights, exterior lights, pathway lights, etc. from anywhere. Use Alexa and Google Assistant for automatic lighting through smartphone or voice commands. No hub is required (2.4GHz Only).

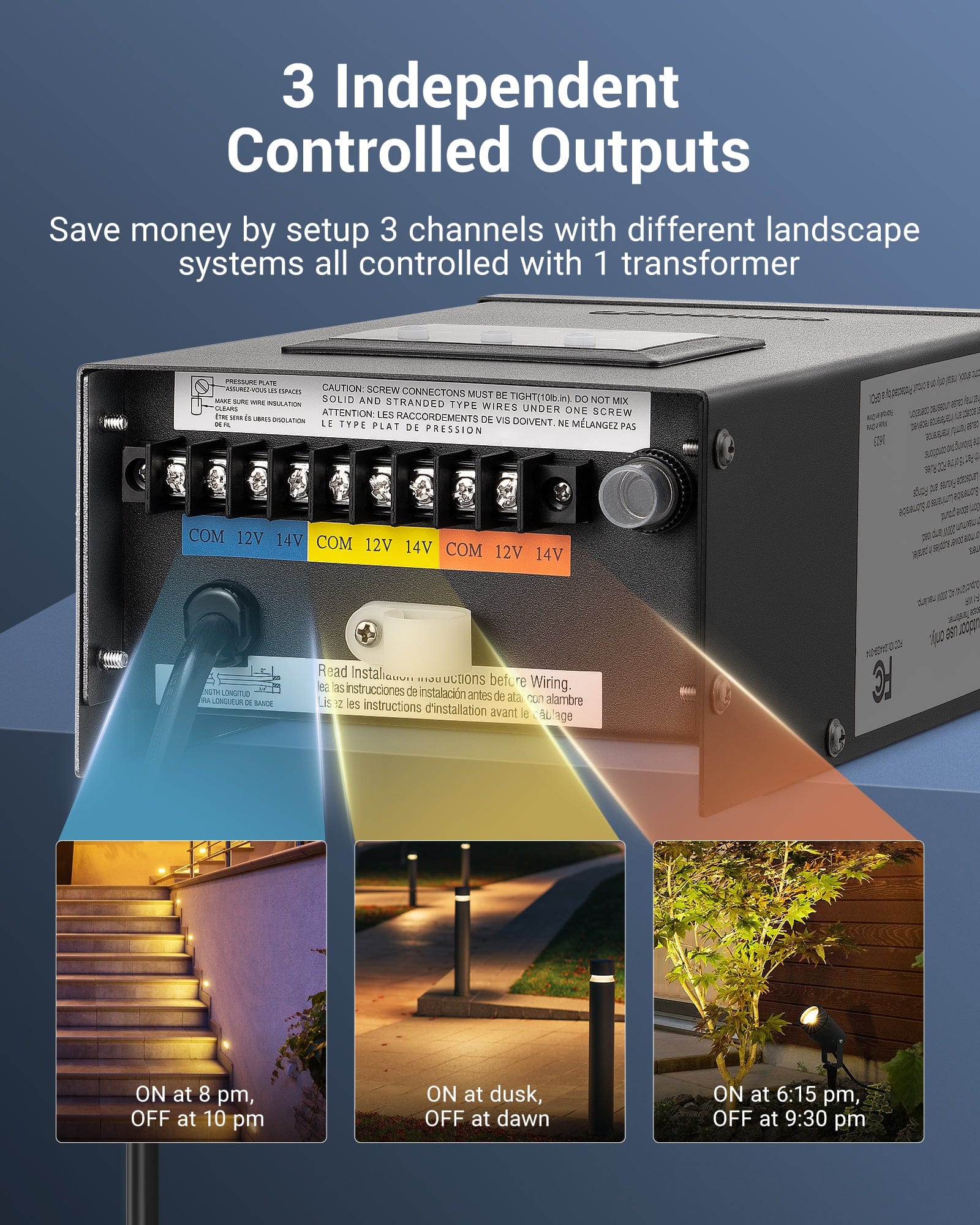

【3 Independent Control Zones】120V 200W landscape lighting transformer with 3 zones for independent control outputs. Press the "Zone" button to select 12V/14V AC output. You can control landscape lights, yard lights, and walkway lights in 3 separate landscape systems, customizing your outdoor lighting.

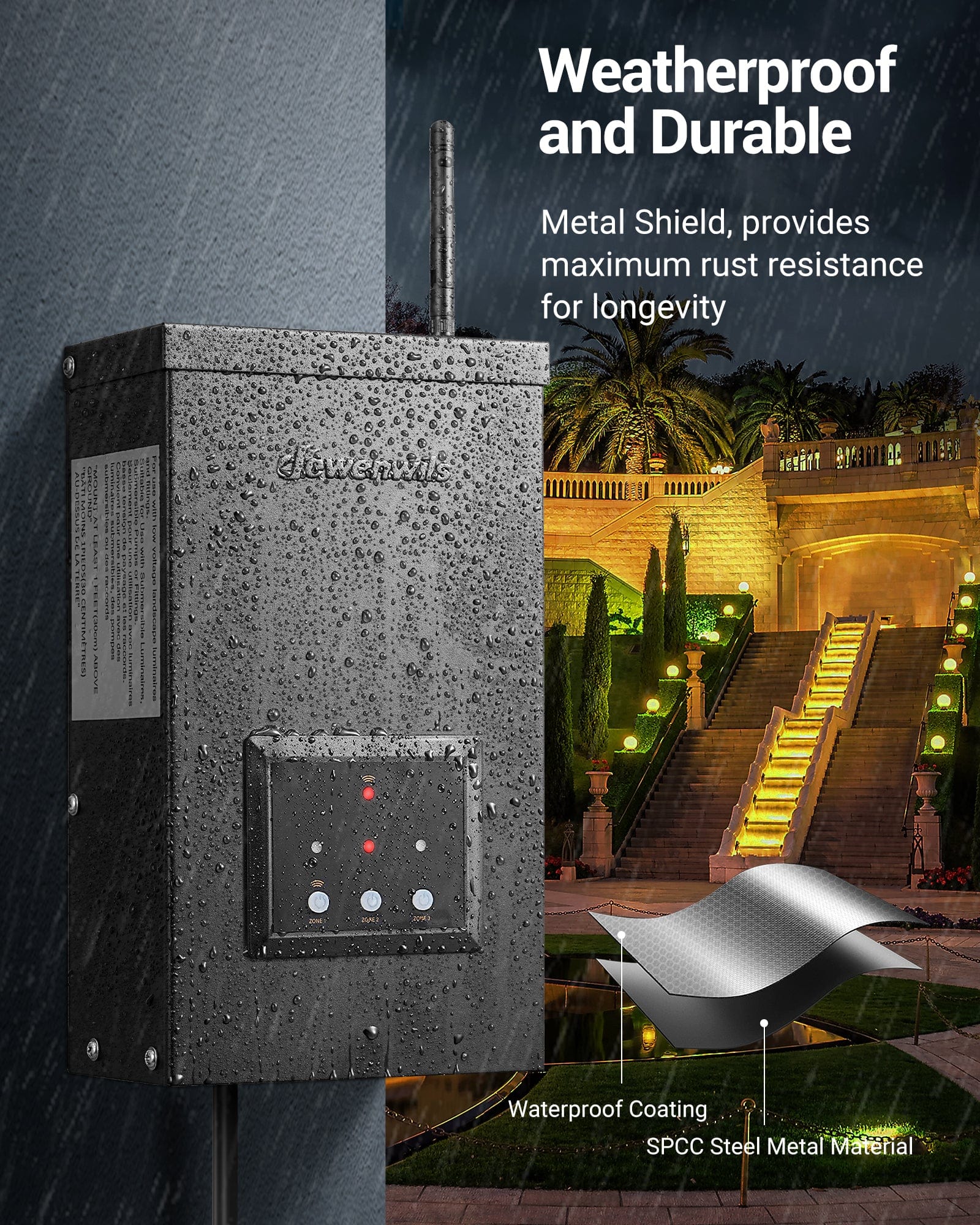

【Durable for Indoor/Outdoor】Made of high-performance, all-metal material, sturdy and waterproof. It can protect the low voltage transformer for landscape lights from rain, snow, dust, and abrasion, ensuring years of use. Ideal for indoor (garages) and outdoor (patios, gardens, walkways, etc.) installations.
【Overload Protection & Memory Function】Over-current and overload protection prevent device damage. The landscape light transformer automatically cuts power when the current threshold is exceeded. Data is stored on a cloud server, so there's no need to worry about power or internet outages. Your selected settings and modes are kept to ensure no data loss.

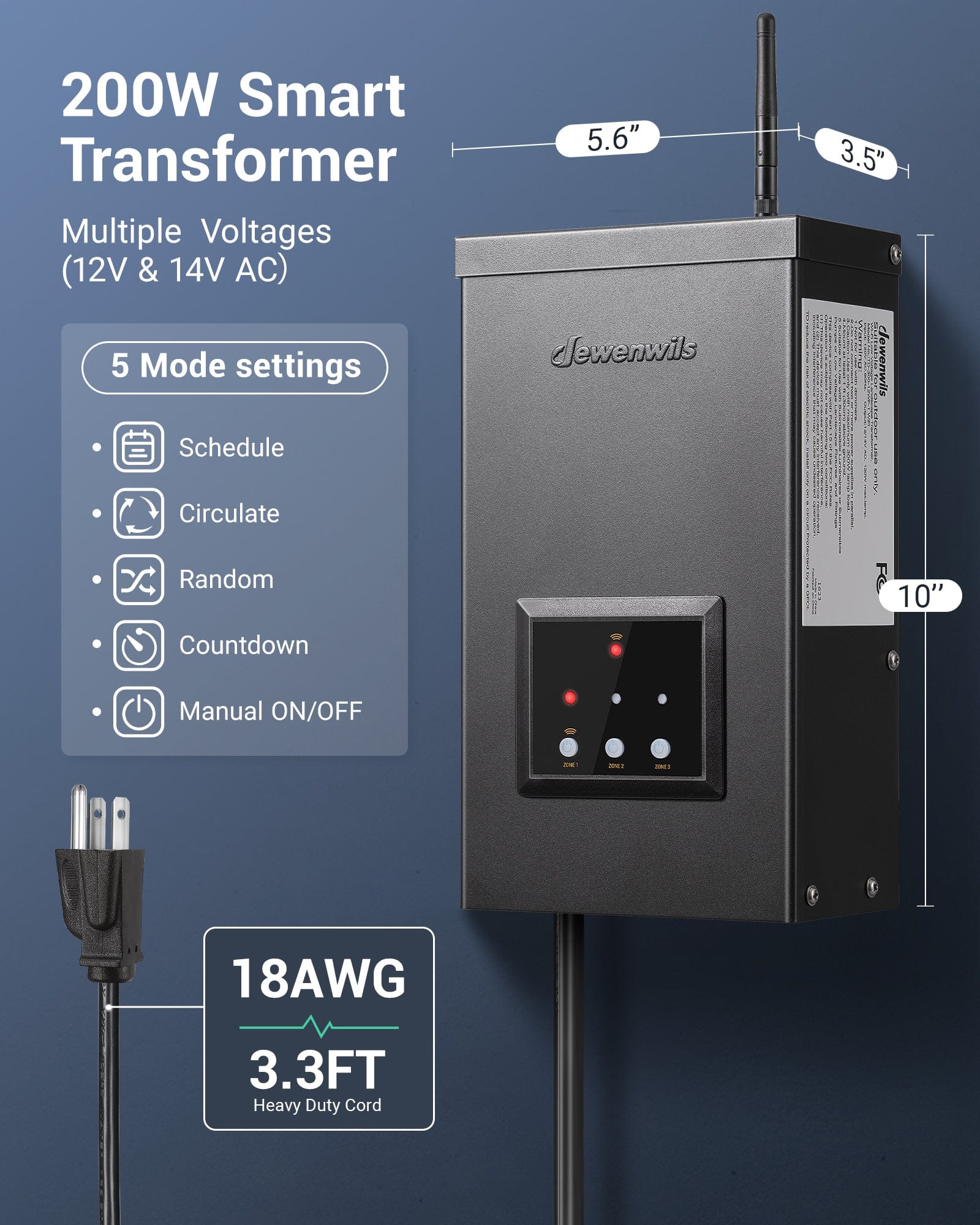

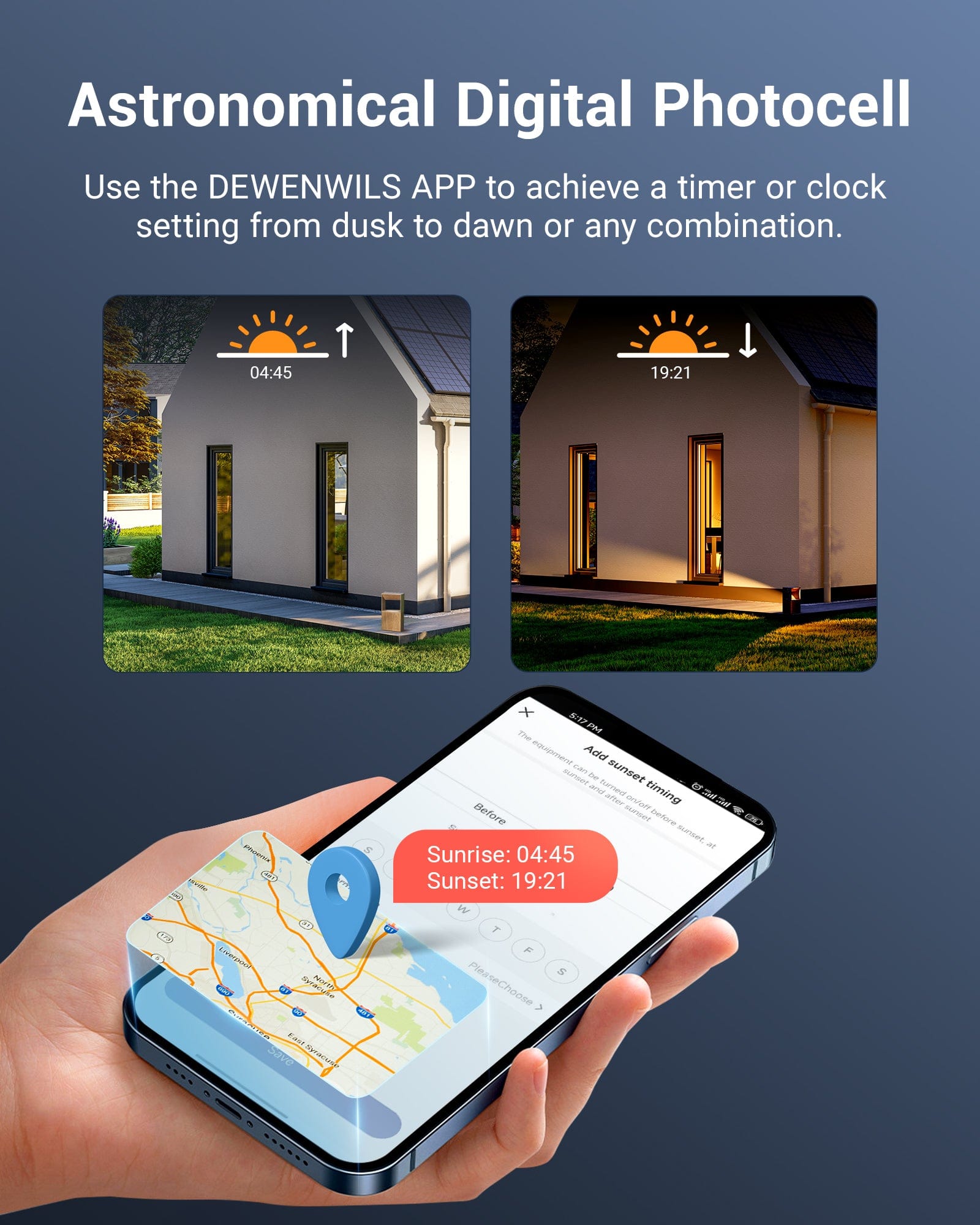

【Schedule & Timer Function】Easy to add and set up, simply press the "+" button to automatically pair the Wi-Fi landscape transformer on the DEWENWILS APP. It offers 5 timer modes: Schedule/Circulate/Random/Countdown/Astronomical, adjustable in 1-minute intervals according to your needs. You can set individual schedules for each zone and have them repeat weekly.
Functions: 200W-Smart Wifi
Photocell Sensor: ✔
Countdown Timer: Precise timing /countdown
AC/DC Transformer: AC
