DEWENWILS Pool Pump Timer Box, Outdoor Programmable Digital Timer Box for Water Heater, Pool Pump, SPA, Motor-SSHODT01A
- Outdoor Digital Timer Box
- Max 2HP 40A 120-277 VAC
- 5 Modes & Multi- Settings
- Operation Temperature -40℉ to 140 ℉
- For Water Heater, Pool Pump, SPA, Motor
FAST Ship from US Warehouse
EASY Return to US Warehouse
Free Tech Support Included
12-Month Quality Warranty
30-Day Return, Refund or Replacement
Guaranteed Safe Checkout

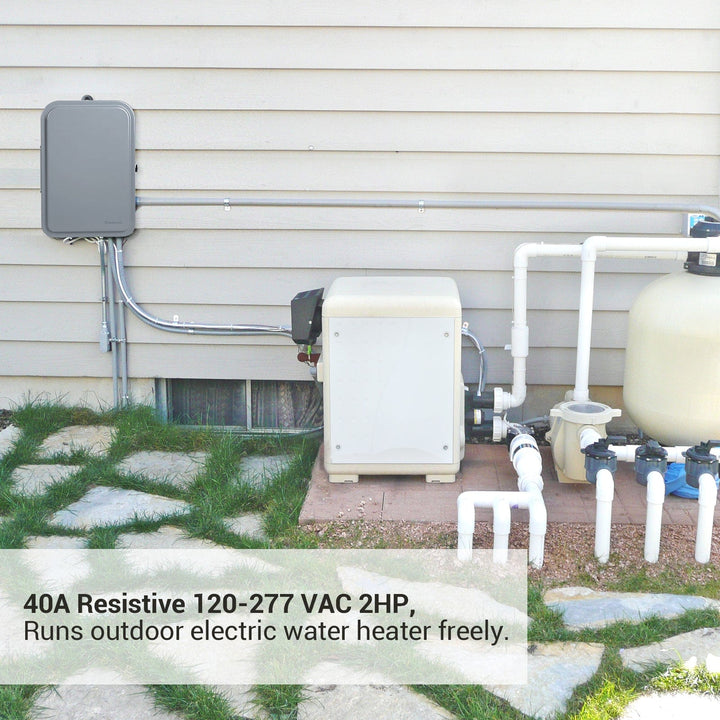

【HIGH POWER LOAD】 With a maximum 40 Amp 120-277 VAC 2HP load, and multi-volt operation from 120-277 VAC, this device is ideal for heavy-duty indoor/outdoor applications such as water heaters, pool pumps, fountains, spas, mowers, air conditioners, etc.

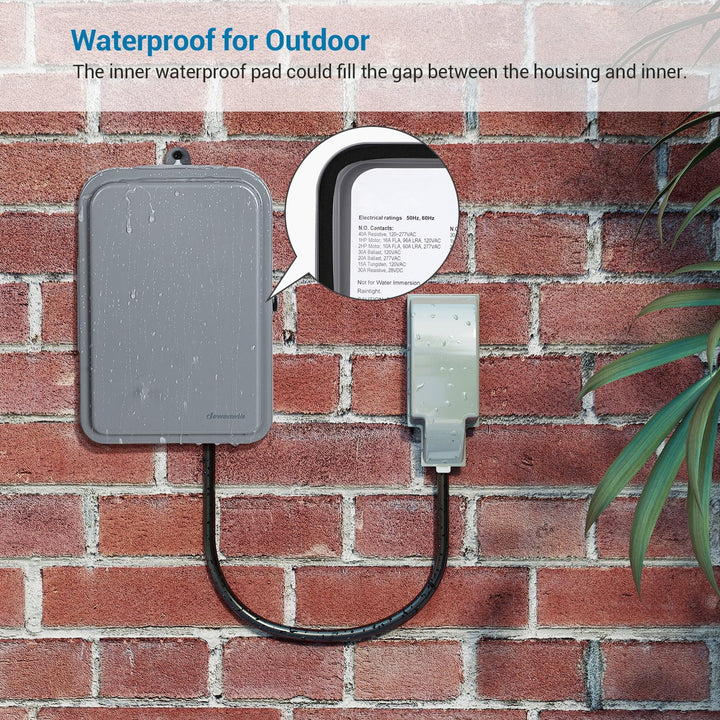

【OUTDOOR RATED】 Designed with a metal cover and waterproof pad to prevent rainwater from flowing into the junction box along the aperture, and with an operating temperature range from -40℉ to 140 ℉, this device allows you to free yourself from the hassle of going outside to turn off or store devices during bad weather.
【5 MODES & MULTIPLE SETTINGS】 You can schedule your connected devices with up to 7 on/off settings, as well as "always on/off", "random", and "DST" modes. The MODE button can also be used as a manual switch to turn the device on/off or switch modes at any time.
【MORE ACCURATE】 With weekly repeat settings, this device can run your devices in the minimum unit of a minute, ensuring that you never miss a scheduled event. The built-in backup battery can hold all settings, even in the event of a power outage, for up to 3 months, eliminating the need to repeat settings.
【WARM AFTER-SALES SERVICE】 We offer a one-year warranty and provide professional help in case you face any technical issues or programming difficulties. We are always available to stand by you.

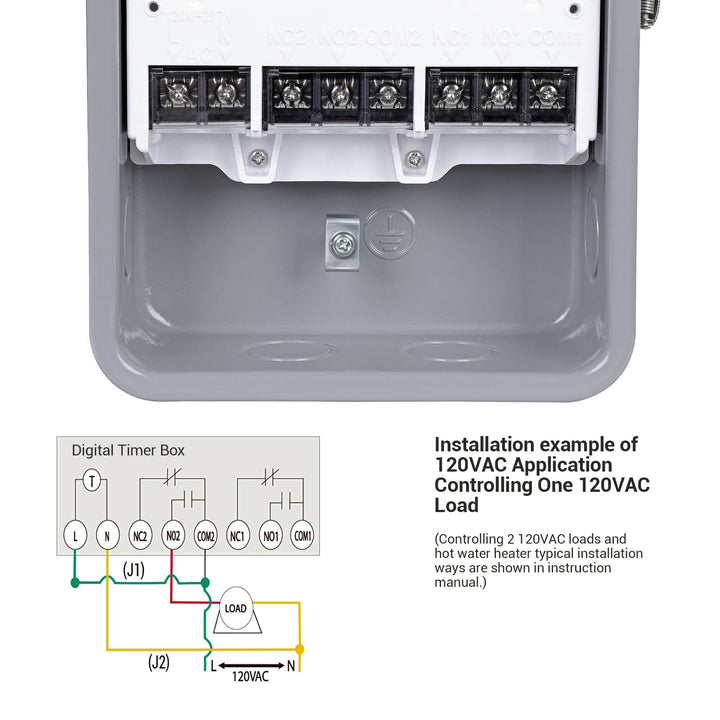

Before initial use, if the digital screen is blank, please wire it as the diagram shows on the last paper to charge the internal battery for at least 30 minutes, and when the display showing numbers, it is ready for programming.
A built in backup battery could maintain time and schedule settings. This timer can adjust for daylight saving time and compensate for sunrise and sunset variation based on Earth's latitude.
PROGRAM: Setting the Clock
+ : Adjust UP
- : Adjust DOWN
MODE: Choose Different Mode
RESUME: Erase Program
TIME: Setting the Clock
Please read the instruction carefully when you begin to set the timer.

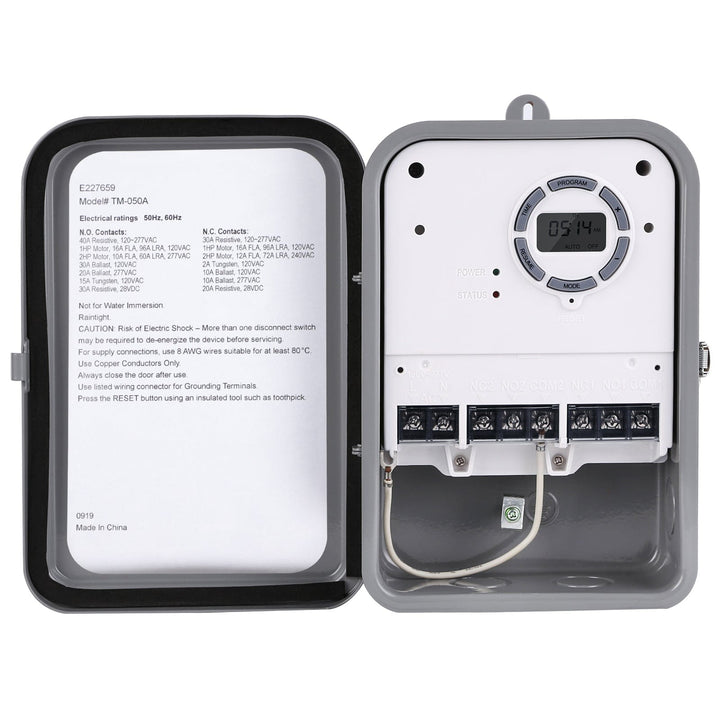

N.O. Contacts, 40A Resistive, 120~277VAC.
1HP, 16A FLA, 96A LRA, 120VAC.
2HP, 10A FLA, 60A LRA, 277VAC.
30A Ballast, 120VAC.
20A Ballast, 277VAC.
15A Tungsten, 120VAC.
30A Resistive, 28VDC.
N.C. Contacts: 30A Resistive, 120~277VAC.
1HP, 16A FLA, 96A LRA, 120VAC.
2HP, 12A FLA, 72A LRA, 240VAC.
2A Tungsten, 120VAC.
10A Ballast, 120VAC.
10A Ballast, 277VAC.
20A Resistive, 28VDC.
|Electrical ratings||50Hz, 60Hz|
|N.O.Contacts||40A Resistive, 120~277VAC |
1HP Motor, 16A FLA, 96A LRA, 120VAC
2HP Motor, 10A FLA, 60A LRA, 277VAC
30A Ballast, 120VAC
20A Ballast, 277VAC
15A Tungsten, 120VAC
30A Resistve, 28VDC
|N.C. Contacts||30A Resistive,120~277VAC |
1HP Motor, 16A FLA, 96A LRA,120VAC
2HP Molor, 12A FLA, 72A LRA, 240VAC
2A Tungsten, 120VAC
10A Ballast, 120VAC
10A Ballast, 277VAC
20A Resistive, 28VDC
